[ LAN ] [ PoE ] LA6-POE Ethernet Programmable LED Signal Tower with PoE

The first programmable, multi-color, 60mm LED Signal Tower with Power over Ethernet (PoE) support.

Product Features

  • Ethernet connection with PoE (Power over Ethernet) support, enabling single cable installation
  • Supports Modbus TCP/IP and HTTP protocols to work seamlessly with your existing infrastructure
  • Built-in web interface for quick and easy setup and configuration
  • Includes 21 programmable LED colors and 11 selectable alarms for unambiguous indication
  • Features a mirroring function for replicating the visual and audible statuses from a master
  • LA6-POE on up to 8 remote slave LA6-POE
  • Built-in terminal block as an alternative control method

Model Specifications

DIMENSIONS 60mm Diameter
OPERATING VOLTAGES 24V DC
Power over Ethernet (PoE): 48V DC
Controls Wire inputs (4 digital inputs)
Network commands
HTTP
Modbus TCP
Socket (PNS, PHN – PATLITE developed protocols)

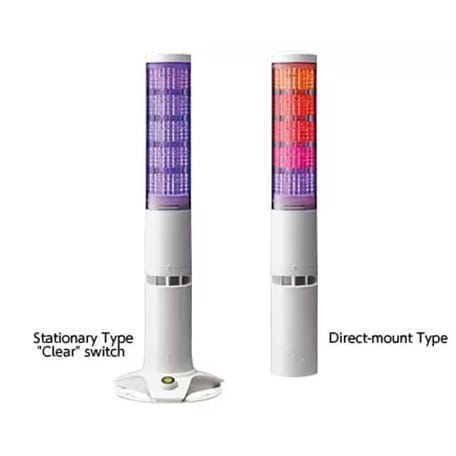

BODY STYLE TN: Direct Mount Type
SN: Stationary Type
BODY COLOR Off-white
Silver (America only)
STACKABLE TIERS 5 Module
MODULE COLORS 21 colors
AUDIBLE STYLE 11 Alarm sounds available
Volume Max 85dB, Adjustable up to Max 85dB
CONFORMITY STANDARDS EMC Directive
RoHS Directive
UL 508
FCC
KC
PROTECTION RATING IP54 (IEC 60529)
