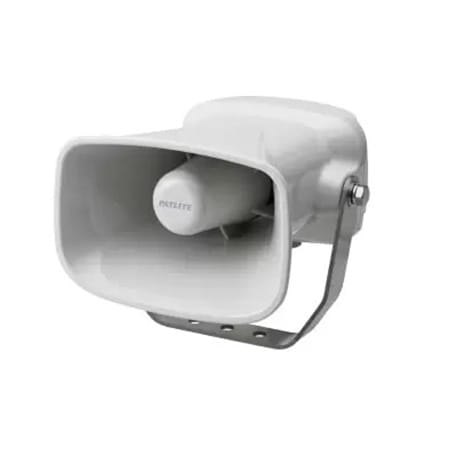

EHS Melody/Alarm Horn

Patlite’s new Melody/Alarm player for Industrial applications has an unbelievably compact design with a sound output of 110dB (at 1m)!
New mode selection features, including a sound synthesizer mode to be heard easier in Factory and Public Address applications. Endures vibration resistance up to 4.5G’s, which is great for Forklifts, AGV’s, etc.An unbelievably compact design with a 110dB (at 1m) Sound!

Product Features

  • A 30% decrease in size in comparison to our current model (EWH) for a more compact design.
  • Stronger vibration resitant characteristics to withstand up to 4.5G force.
  • Despite the smaller size, it has a loudness for a maximum of 110dB (at 1m).
  • Now offers a selection between Cable connection or Terminal connection.
  • 4 playback modes in combination with commands available to be setup for the right application.
  • Playback Modes: Normal Playback; Input Priority Playback; Hold Playback; Memory Playback
  • Command Modes: Sound Reduction; Factory; Public Address; Bit/Binary; Forced Playback; Group Selection
  • Terminal Assignment Modes: Playback; STOP; CLEAR; Sound Reduction
  • Can be used with either PNP or NPN transistor driven inputs.
  • It complies with Europe’s environment-friendly RoHS Directive.
  • Protection Rating of IP65 (Refer to manual for more details).
  • The use of the SD card can allow changing messages while out in the field.
  • Conforms to the CE requirements.

Model Specifications

RATED VOLTAGE DC 12 – 24V
AC 100 – 240V
AUDIBLE STYLE 32 Sounds
MOUNTING Bracket Mount Included
BODY COLOR Off-white
SOUND STORAGE Up to 110dB at 1m
CHANNEL SELECTION A total of 32 sounds stored (See Specifications for list)
4 Playback modes available to match the environment
SOUND CHART Bit Mode: Select from 8 channels available with a signal input
Binary Mode: Select from 32 channels available with a signal input
CONFORMITY STANDARDS UL464
CSA-C22.2 No. 205-M1983
FCC Part 15 Subpart B Class 4
CE (EHS-M1 Only)
RoHS Compliant
PROTECTION RATING IP65
REMARKS Sound Reduction
32 pre-loaded sounds
Terminal or Cable connection option
NPN or PNP Input compatibility
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing
FUNCTIONS Vibration Resistance of 4.5G
