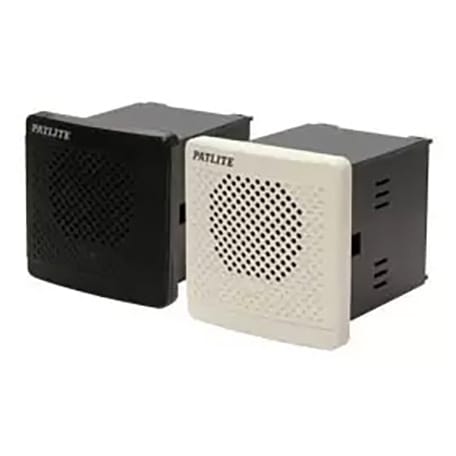

BD 80mm sq., 32 sound BD

The panel-mount BD Series stores 32 different melody sounds (sound groups from “A” to “P”) conveniently arranged for playback, suitable for noisy factories. The “P” sound group can be re-programmed using any of the 32 pre-installed sounds (optional SD card required).

Product Features

  • Maximum output level of 90dB at 1m is suitable for use in a noisy factory.
  • 32 sounds are pre-recorded in one unit which can be used for various applications.
  • Sound output level and sound group can be selected by rotary switches stored behind the front panel for easier operation even after installation.
  • Select one sound group from A to P to playback 4 pre-recorded sounds.
  • A new sound group can be created from the 32 sounds by using an optional
  • SD Card (sold separately).
  • RoHS compliant.

Model Specifications

DIMENSIONS 80mm square (front)
67.5mm square (back)
RATED VOLTAGE DC 12-24V
AC100V/220V
AUDIBLE STYLE Alarms / Chimes / Melodies – Pre-installed
MOUNTING Upright position – Indoors only
BODY COLOR Light Gray
Dark Gray
VOLUME Maximum 90dB at 1 meter
Volume adjustable from zero
SOUND STORAGE A total of 32 sounds stored (See Specifications for list)
Arranged in 8 selectable groups of sounds
Each group has 4 pre-arranged sounds
CHANNEL SELECTION Select one of 8 sound groups by rotary switch
Select any of 4 sounds in chosen groups by signal input
Re-program last sound group from sounds stored in the unit (optional sound card required)
SOUND CHART Open the BD-E Specifications page for the complete list of sounds installed
Only the BD-E sounds are available for replay in the “Sound Samples” link above
CONFORMITY STANDARDS CE Marking
UL Component Recognition (US)
c-UL Component Recognition (Canada)
RoHS
PROTECTION RATING IP-54 (panel-mounted, front direction only)
REMARKS Dry contact closure such as switches or relay contacts
Open-collector transistor (NPN)
FUNCTIONS Sound only plays during contact closure
Sound stops when contact is Open
