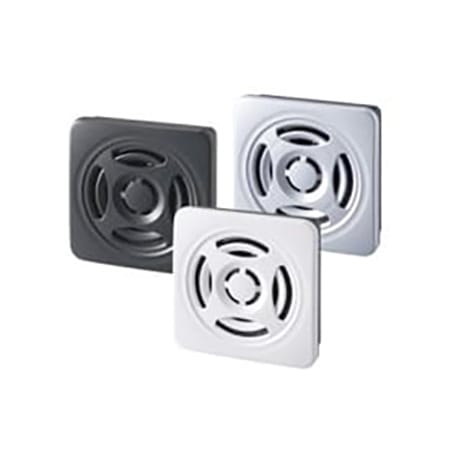

BDV Voice Annunciator BDV
The BDV is an MP3 voice annunciator which produces excellent sound quality from pre-recorded MP3 files. The panel mounting style results in a clean, integrated look for most any application and programming it is easily accomplished with Patlite’s SD card (sold separate) and Patlite’s free (downloadable) programming software.
Product Features
- Only embedded mounting style available.
- Able to produce a loud sound of up to 87 dB (at 1m) despite its compact size
- A volume control on the front panel provides an easy way to adjust the sound volume.
- The use of an SD card allows message changes without dis-mounting the device.
- Environmentally friendly since the unit complies with the EU RoHS Directives.
- Several playback modes are available for various applications.
- Includes binary input as a standard option for selecting up to 15 messages.
- Supports input selection using NPN open-collector transistor.
- The unit complies with EU Directives and includes the CE mark (BDV-15JF only)
- Two colors are available for selecting the best color match for the installation.
- Protection rating: IP54 (only the front when flush mounted)
Model Specifications
| DIMENSIONS | 80mm x 80mm x 94.7mm |
| RATED VOLTAGE | DC12/24V AC100/220V (1) |
| BODY COLOR | Dark Gray Light Gray |
| VOLUME | Maximum 87dB at 1 meter |
| SOUND STORAGE | Approximate Recording Time: 63 seconds (Bit rate=64k/s) |
| CHANNEL SELECTION | Select 1 of 4 channels available by signal input to 1 or 4 terminals In Binary Mode, select 1 of 15 channels available by signal inputs among 4 terminals |
| CONFORMITY STANDARDS | CE Marking RoHS MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing |
| PROTECTION RATING | IP54 |
| FUNCTIONS | Sound Reduction Mode reduces volume by 10dB |
