BKV Voice Annunciator BKV
The BKV is an MP3 voice annunciator which produces excellent sound quality from pre-recorded MP3 files. The panel mounting style results in a clean, integrated look for most any application and programming it is easily accomplished with Patlite’s SD card (sold separate) and Patlite’s free (downloadable) programming software.
Product Features
- Only embedded mounting style available
- Able to produce a loud sound of up to 95 dB (at 1m) despite its compact size
- A volume control on the front panel provides an easy way to adjust the sound volume.
- The use of an SD card allows message changes without dis-mounting the device.
- Environmentally friendly since the unit complies with the EU RoHS Directives.
- Several playback modes are available for various applications.
- Includes binary input as a standard option for selecting up to 31 messages.
- Supports input selection using NPN open-collector transistor.
- The unit complies with EU Directives and includes the CE mark (BKV-31JF only)

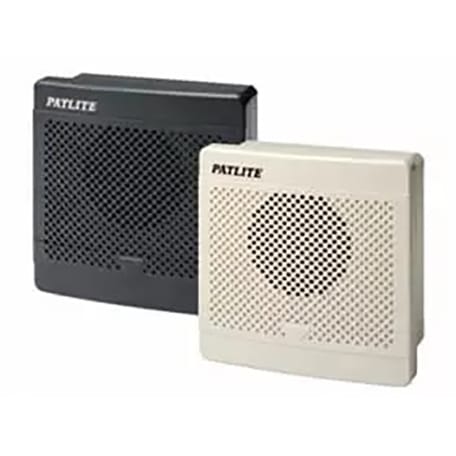

- Two colors are available for selecting the best color match for the installation.
Protection rating: IP54 (only the front when flush mounted)
Model Specifications
DIMENSIONS | 120mm x 120mm x 62.8mm |
RATED VOLTAGE | DC12/24V AC100V* *Special Order Item |
MOUNTING | Panel Mount Vertical mounting angle only Indoor: Upright, upside-down, sideways Outdoor: Upright only |
BODY COLOR | Dark Gray Light Gray |
VOLUME | Maximum 95dB at 1 meter Adjustable volume control |
SOUND STORAGE | Approximate Recording Time: 63 seconds (Bit rate=64k/s) |
CHANNEL SELECTION | Bit Mode: Select from 1 to 5 channels available with a signal input Binary Mode: Select from 1 to 31 channels available with a signal input |
CONFORMITY STANDARDS | CE Marking RoHS MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing |
PROTECTION RATING | IP-54 (Upright Only) |
FUNCTIONS | Momentay Input: Message plays once Sustained Input: Message repeats until input is open |
REMARKS | Dry contact closure such as switches or relay contacts Open-collector transistor (NPN only) |
OPTIONS | Playlist Editor Program (for mp3 file arrangement)* SDV-2GP:SDCard (for mp3 file transfer and storage)** *Available from Patlite with purchase of BKV unit **Other SD cards not guaranteed to work |
