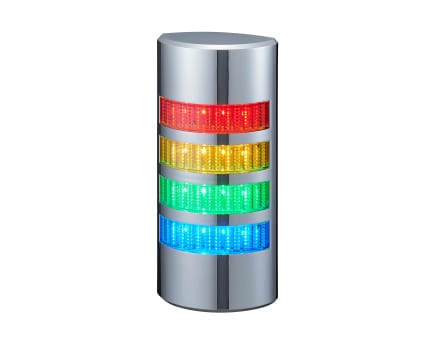

WE-LAN

Different displays for various situations

(All tiers light up and blink with the same color / 9 colors available / Flowing display / Pulse)
Click here for video showing different lighting patterns.

Easy and safe to use

Simple control with general-purpose protocol

General-purpose protocols like HTTP and Modbus TCP/UDP are supported so implementation can be done with minimal development effort.
It also supports SOCKET communications. PNS commands, developed by PATLITE, can be used so existing product can be easily replaced.

Easy connection via RJ-45 terminal

The RJ45 female connector cable coming out of the unit can be connected to a LAN cable. Compared to discrete-wire type products, this reduces the man-hours required for wiring. If it is necessary to remove the unit for maintenance or some other reason, it can be easily done.

Other Key Features

• Slim, 37.5 mm profile improves sense of integration with equipment and facilities
• Detailed unit settings including IP address can be configured on a web browser
• Various standards acquired, can be used globally

Special Design

Lighting Patterns

(Light off)

(Standard colors)

(Other colors)

(All same color)
