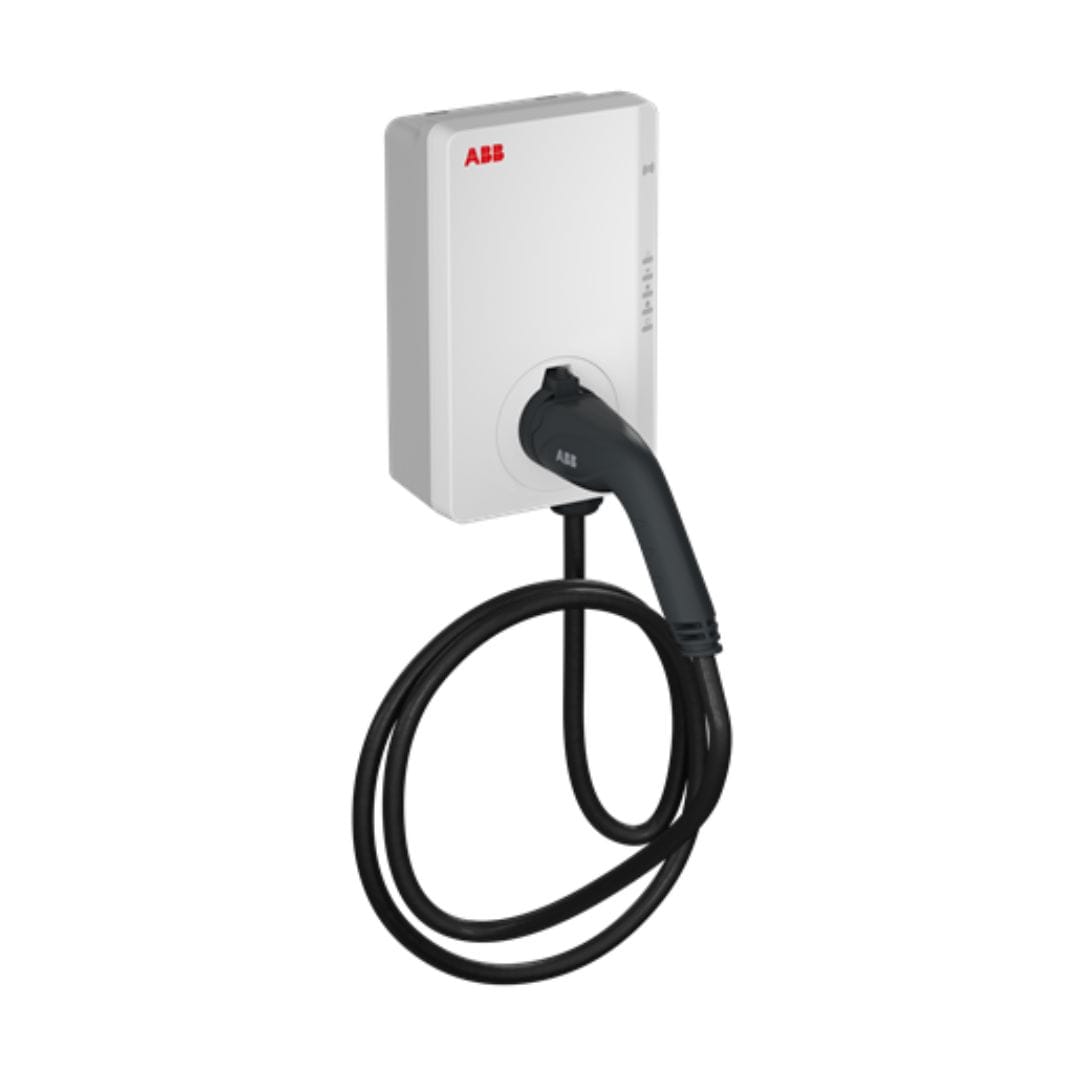

TERRA AC-W7-G5-R-0
The Terra AC charger is designed specifically for electric vehicles. It features RFID technology and comes with a 5m type 2 cable. With a voltage rating of 230VAC single phase, it has a rated power of 7.4kW and a maximum current of 32A.
The charger is housed in an enclosure with an IP54 protection degree, ensuring durability and resistance to dust and water ingress. Connectivity options include Wifi, Bluetooth, and Ethernet, allowing for easy integration into existing networks.
The charger also includes a built-in energy meter and can be integrated with advanced energy systems for dynamic load management.
Safety features are comprehensive, including protection against overcurrent, overvoltage, undervoltage, ground fault, surge protection, and protective earth continuity monitoring.
Additionally, the charger is enabled for remote software updates, ensuring that it stays up-to-date with the latest features and improvements.
Model Specifications
| EV Connectors | (AC Type 2) 1 piece |
| Number of Socket Outlets | AC Type 2 cable only |
| Cable Length | 5 m |
| Output Power | Nominal 7 kW |
| Output Voltage (Uout) | AC 1-phase 184 … 276 V |
| Output Current Maximum (Iout) | AC 1-phase 32 A |
| Connection Power | Nominal 7 kW |
| Input Voltage (Uin) | AC 1-phase 184 … 276 V |
| Input Current | 1-phase 32 A |
| Frequency (f) | 50 … 60 Hz |
| Connection Configuration | TT, TN |
| Communication Interface | Wi-Fi Ethernet Bluetooth Modbus |
| Declaration of Conformity – CE | 9AKK107991A0511 |
| Standards | EN 61851-1 EN 61851-23 EN 61000-6-2 EN 61000-6-3 EN 301 908-2 IEC 60721-3-2: IE23 RoHS |
| Product Net Width | 195 mm |
| Product Net Height | 110 mm |
| Product Net Weight | 4.1 kg |
