REF
LED beacons with rugged design ideal as warning lights in potentially flammable and hazardous explosive environments such as chemical, petrochemical, mineral/natural gas productions.
- Flame-proof enclosure “d”
- Certified for gas areas of Zone 1 and Zone 2
- Compatible with ATEX and IECEx
- Multi-function beacon with various light patterns via wiring
- Maintenance-free with LEDs and no motors

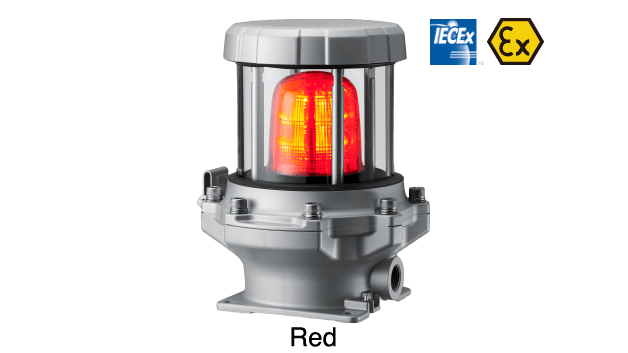

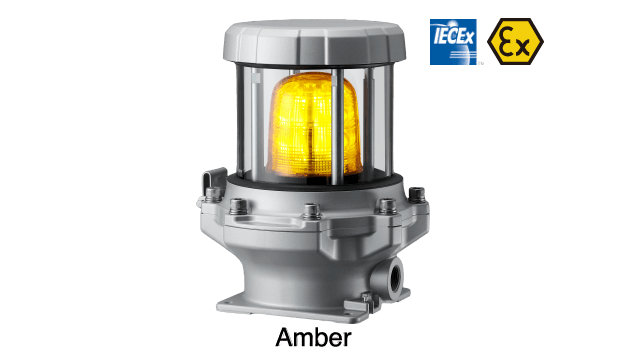

- LED color options: Red or Amber
- Rugged aluminum die-cast housing and hard transparent glass
- Durable warning lights, ideal for hazardous locations; Gas Facilities, Painting Lines, Power Plants, Chemical Plants, Steel Plants
Caution!!
Certified Ex cable gland (Marking: Ex db ⅡC Gb) shall be used to equipment and installed in accordance with EN/IEC 60079-14.
Specifications
| Model | REF-M1 | REF-M2 | |
|---|---|---|---|
| Rated Voltage | 12-24V DC | 100-240V AC (50/60Hz) | |
| Ambient Temperature | -20℃ to +55℃ | ||
| Mounting Location | Indoor ＆ Outdoor | ||
| Mounting Direction | Upright | ||
| Protection Rating | IP65 | ||
| Environmental Condition | Upright | ||
| Lighting Patterns | Triple-flash (120 flashes per minute) Continous Rotating (120 rpm) |
||
| Mass (Tolerance ±10%) | 7.06kg | ||
| Explosion-proof Specifications | Ex mark | IECEx – Ex db ⅡB+H₂ T6 Gb ATEX – Ⅱ 2 G Ex db ⅡB+H₂ T6 Gb |
|
| Explosion-proof Zone | Zone1 (Class Ⅰ hazardous locations) Zone2 (Class Ⅱ hazardous locations) |
||
