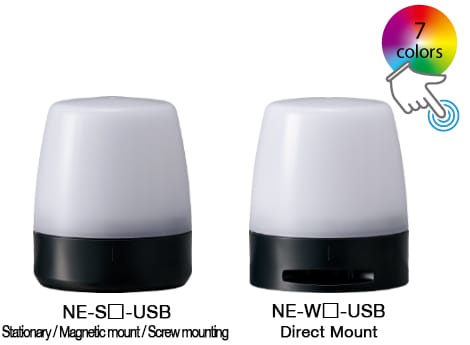

USB Bus Power & Easy Control. Multi-color: 7 colors can be displayed to meet your application requirements.



  • Supply power through bus power and controls with one cable when connected to a PC.
  • The Touch Sensor model can send a signal to an upper-layer device by simply touching the top of the beacon, eliminating the need for a physical switch.
  • Easy programming using the DLL software library.
    It can also be controlled by various protocols, so operating systems other than Windows can be used.
  • Control is possible without installing dedicated drivers because it is an HID class device.
  • Ideal for office and retail applications. Get gentle yet noticeable notification with the soft light from the translucent lens and alarms that are easy on the ear.
  • Neodymium magnet type allows easy installation on desks and walls.
    In addition, the 1/4 inch screw receptacle supports a wide range of mounting methods such as tripods. ※NE-S□-USB
  • Pole mount and wall mount options available (NE-001D for pole-mounting and NE-002D wall-mounting).
※A USB cable (type A male to type C male) is not provided. To be obtained separately by the customer. ※Programming knowledge required to control unit from PC via USB port.


Rated Voltage 5V DC (USB Bus Power)
Size Φ56
Protection Rating IP 20 IP 65 (Upright)
Installation Example snマグネット取付イメージ sn三脚取付イメージ wnNE-002Dイメージ wnポール取付イメージ
Magnet mounting 1/4-inch screw mounting
※Please obtain tripod
Wall mounting bracket Pole mounting
(pole bracket)
