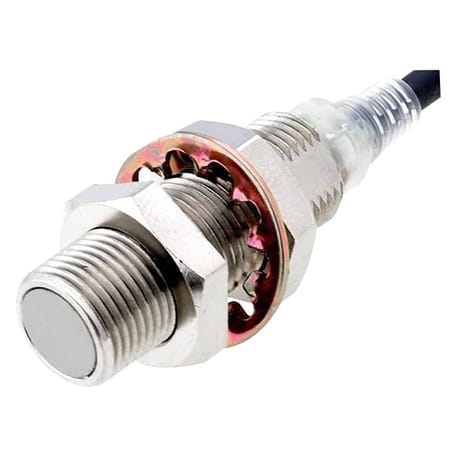

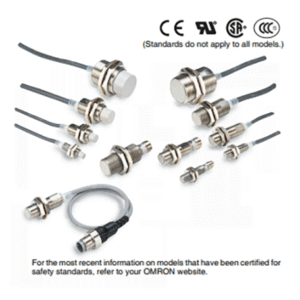

PROXIMITY SENSOR E2E-X3D1-N 2M

spesifikasi

– Sensing head size M12
Type Cylinder type (with screw), Shielded
Power source DC 2-wire models
Sensing distance 3 mm ±10%
Setting distance 0 to 2.4 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 12 x 12 x 1 mm
Response frequency 1 kHz
Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range 10 to 30 VDC
Leakage current 0.8 mA max.
Control output (Switching capacity) 3 to 100 mA
Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m)
Indicator Operation indicator (red), Operation setting indicator (green)
Operation mode NO
Polarity Polarity
Protective circuit Output short-cut protection
Surge suppressor
Ambient temperature (Operating) -25 to 70 ℃
Ambient temperature (Storage) -40 to 85 ℃
Ambient humidity (Operating) 35 to 95% RH
Ambient humidity (Storage) 35 to 95% RH
Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
Company standard: Oil-proof
Connection method Pre-wired models (2 m)
Weight Package: Approx. 70 g
Material Case: Brass nickel plating
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating
Accessories Instruction manual
