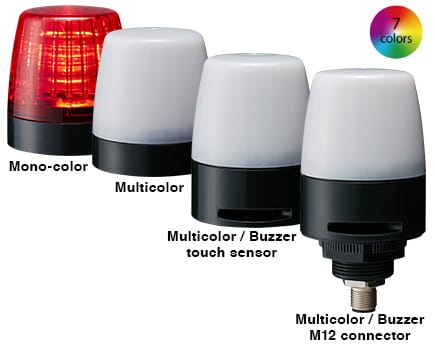

NE-A
LED Signal Light Series featuring mono-color or multi-color models with a capacitive touch sensor and rugged housing for maximum versatility.
Feature available:
【Multi-color Model】
- Capacitive touch sensor enables real-time status confirmations
- Features simultaneous use of continuous, flashing, and audible alarm conditions
- Up to 7 selectable LED colors
- Toggle between 4 patterns (red, blue, white, or off) while in touch sensor mode
- High protection rating for operation in harsh environments
- M12 Connector specification available for easy wiring.
【Mono-color Model】
- Choose from 5 LED color options (Red, Amber, Green, Blue, White)
- Newly developed reflector emits evenly distributed light, for clear, unambiguous indication
- High protection rating for operation in harsh environments
Specifications
| Model | NE-24A-□ □：R/Y/G/B/C |
NE-M1ANN-M | NE-M1ANB-M | NE-M1ATB-M | NE-M1ACNB-M |
| Size | Φ56mm | ||||
| Rated Voltage | 24V DC | 12-24V DC | |||
| Mounting Location | Indoor | ||||
| Mounting Direction | All directions | ||||
| Protection Rating | IP65 NEMA TYPE 4X, 13 |
IP67 NEMA TYPE 4X, 13 |
IP65 NEMA TYPE 4X, 13 |
||
| Luminous Color | Red / Amber / Green / Blue / White |
Multi-color ( Red / Amber / Green / Blue / White / Cyan / Purple ) | |||
| Sound Pressure | – | 88dB Intermittent or Continuous |
|||
| Light Pattern/Function | Continuous | Continuous / Flashing | Continuous / Touch sensor | Continuous | |
| Wiring | Screwless terminal block | Cable (2m) | M12 Connector | ||
