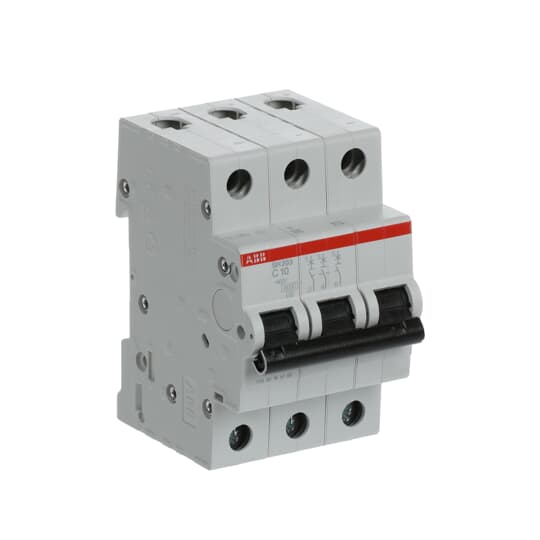

MCB SH203-C10
Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.
They are available in different characteristics (B,C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.
Read More:
Model Specifications
| Standards | IEC/EN 60898-1 |
| Tripping Characteristic | C |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
| Rated Short-Circuit Capacity | (AC) 6 kA (400 V AC) 6 kA (400 V) 6 kA |
| Contact Position Indication | ON / OFF |
| Ambient Air Temperature | Operation -25 … +55 °C Storage -40 … +70 °C |
| Reference Ambient Air Temperature | 30 °C |
| Product Net Width | 52.5 mm |
| Product Net Height | 85 mm |
| Package Level 1 Gross Weight | 1.29 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
| Certification Agency | EN IEC |
| Declaration of Conformity – CE | 2CDK400607D2703 |
| Classification | EC000042 – Miniature circuit breaker (MCB) |
| WEEE B2C / B2B | Business To Business |
| Ordering | carton 1 piece |
