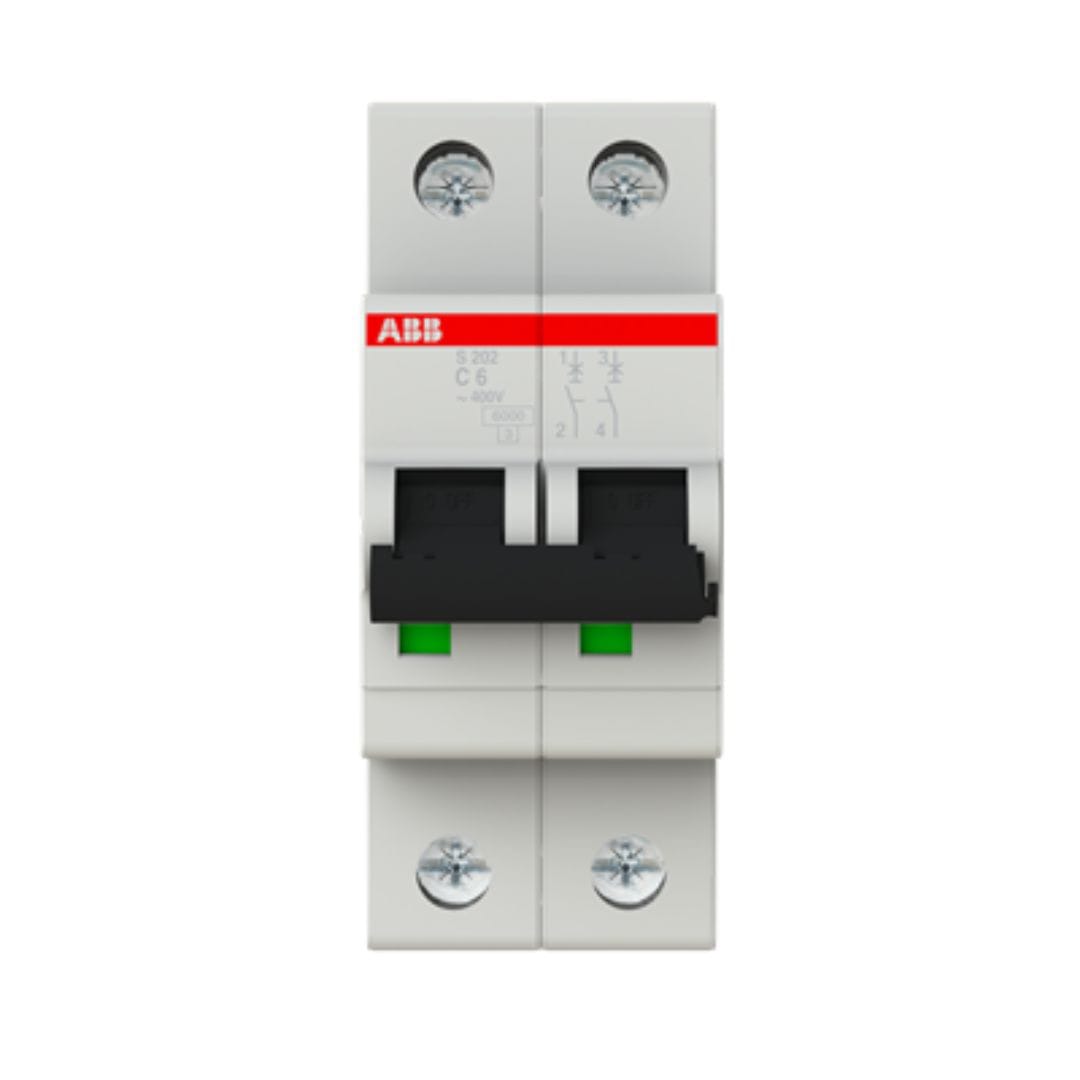

MCB S202-C6
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.
They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Download Catalog Click Here!
Model Specifications
Standards | IEC/EN 60898-1 IEC/EN 60947-2 UL 1077 |
Tripping Characteristic | C |
Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
Rated Short-Circuit Capacity | (AC) 6 kA (DC) 6 kA (400 V AC) 6 kA (400 V) 6 kA |
Contact Position Indication | Red ON / Green OFF |
Ambient Air Temperature | Operation -25 … +55 °C Storage -40 … +70 °C |
Reference Ambient Air Temperature | 30 °C |
Product Net Width | 35 mm |
Product Net Height | 85 mm |
Package Level 1 Gross Weight | 1.3 kg |
Pole Net Weight | 0.125 kg |
Built-In Depth (t2) | 69 mm |
Certification Agency | EN IEC UL |
Declaration of Conformity – CE | 2CDK403001D0607 |
Classification | EC000042 – Miniature circuit breaker (MCB) |
ABB EcoSolutions | Yes |
Environmental Product Declaration – EPD | 9AKK108467A7832 |
