Products

M1175

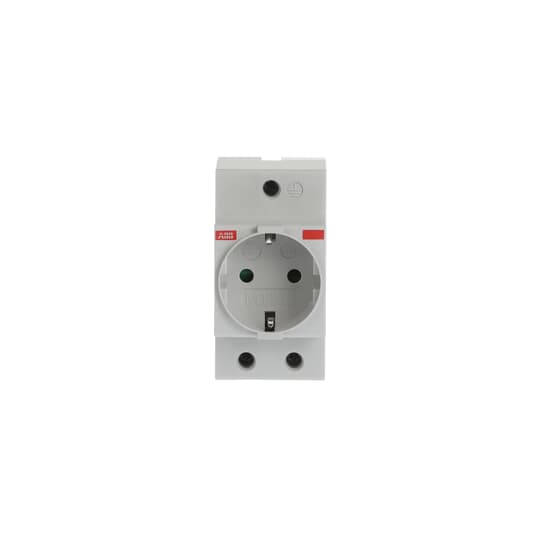

This modular socket allows the connection of devices, tools or electrical and electronic non modular equipments in civil and industrial electrical switchboards.

Download Catalog Click Here!

Model Specifications

Standards German Schuko Standard
Rated Voltage (Ur) 250 V AC
Rated Current (In) 16 A
Rated Frequency (f) 50/60 Hz
Color Grey
Ambient Air Temperature Operation -25…+35 °C
Storage -40…+70 °C
Cable Cross-Section Minimum 2.5 mm²
Maximum 16 mm²
Product Net Width 0.045 m
Product Net Height 0.085 m
Package Level 1 Gross Weight 0.54 kg
Product Net Weight 0.115 kg
Built-In Depth (t2) 60 mm
Certification Agency VDE
Declaration of Conformity – CE 9AKK107492A6968
Classification EC001663 – Socket outlet for distribution board
WEEE B2C / B2B Business To Consumer
Ordering box 4 piece
