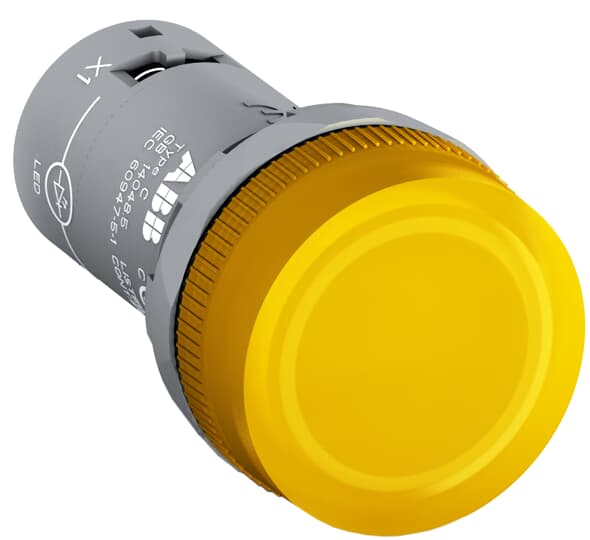

COMPACT LED PILOT LIGHT (CL2-523Y)

Features and Benefits

  • Reliable, easy to select and to install
  • Increase your uptime with products designed and engineered to deliver total reliability
  • Long lifetime thanks to self-cleaning contacts
  • Select modular range and get flexible and adjustable products to meet your exact needs
  • Save up to 30% installation time with unique tool-free snap on components with modular range
  • Compact range provides extremely reliable IP66, IP67 and IP69K products in just one ordering code simplifying ordering and administration
  • Reduce your installation size with compact range
  • A large choice of operators, bezels and accessories
  • Wide range of LEDs covering all the needs
  • High mechanical durability up to 10 millions operations
  • High AC 15 electrical ratings: 6 A at 230V

Model Specifications

Product Net Width 0.03 m
Product Net Height 0.03 m
Product Net Depth / Length 0.052 m
Product Net Weight 0.018 kg
Ambient Air Temperature Operation -25 … +70 °C
Storage -40 … +85 °C
Color Yellow
Actuator Type Pilot light head
Illumination Illuminated
Lamp Type 230 V AC, integrated LED
Degree of Protection Front IP66
Front IP67
Front IP69K
Terminals IP20
Enclosure Type NEMA Type1
Type12
Type13
Type3R
Type4
Type4X
Rated Frequency (f) Supply Circuit 50 / 60 Hz
Connection Type Screw Clamp
Terminal Type Screw Terminals
CB Certificate CQC_CN_CN50749
CQC Certificate CQC2003010305054693
EAC Certificate EAC-RU C-CN.ME77.B.00690_20
