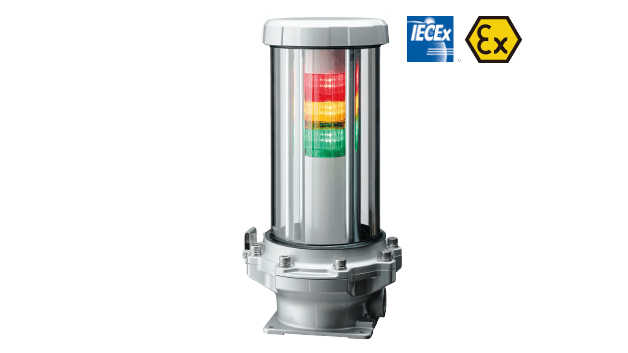

EDLR
Signal Towers with robust designs for displaying alert statuses in potentially flammable and hazardous explosive environments, such as chemical, petrochemical, mineral/natural gas production.
Feature available:
Read More:
- Flame-proof enclosure “d”
- Certified for gas areas of Zone 1 and Zone 2
- Compatible with ATEX and IECEx
- Red, Amber, and Green LED illuminate with blinking function to indicate alert status
- Rugged aluminum die-cast housing and hard transparent glass
- Highly durable indication lights ideal for hazardous locations; gas facilities, painting lines, power plants, chemical plants, steel plants
(Caution!)
Certified Ex cable gland (Marking: Ex db ⅡC Gb) shall be used to equipment and installed in accordance with EN/IEC 60079-14.
Specifications
| Model | EDLR-302F | EDLR-3M2F | |
|---|---|---|---|
| Rated Voltage | 24V DC | 100-240V AC (50/60Hz) | |
| Ambient Temperature | -20℃ to +50℃ | ||
| Operating Ambient Humidity | Less than 90% (No condensation) | ||
| Mounting Location | Indoor ＆ Outdoor | ||
| Mounting Direction | Upright | ||
| Protection Rating | IP66 | ||
| Environmental Condition | Upright | ||
| Flashing Rate | 60±2 flashes per minute | ||
| Mass (Tolerance ±10%) | 9kg | ||
| Explosion-proof Specifications | Ex mark | IECEx – Ex db ⅡB+H₂ T6 Gb ATEX – Ⅱ 2 G Ex db ⅡB+H₂ T6 Gb |
|
| Explosion-proof Zone | Zone1 (Class Ⅰ hazardous locations) Zone2 (Class Ⅱ hazardous locations) |
||
