LKEH
The LKEH series is a combination of a signal tower and a powerful speaker with enhanced sound and capabilities. To use the LKEH-FV, you will need the software’s playlist editor. If you want to use the software to input text-to-speech data, please contact your PATLITE overseas office by email. The playlist editor will be sent to you.

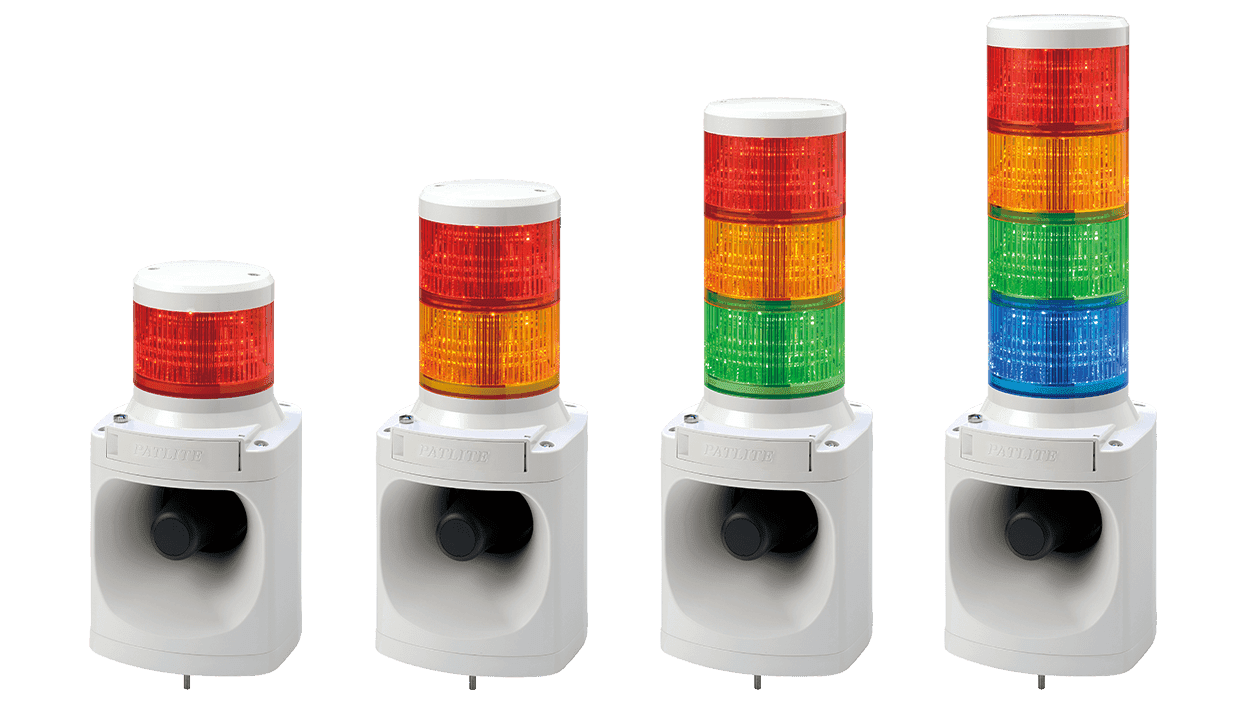

The LKEH series is a large horn and signal tower combination that supplies greater sound and capability.
- Visible from great distance with ultra bright LEDs and 100mm diameter lens.
- Safe for use at high vibration environment with robust 2G vibration resistant design.
- Easy to control with only one common wire for both LEDs and audible signals.
- CE, RoHS, IP53, (UL, c-UL pending).
- Field programmable with SD card. (Sold separately)
- Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
- Smooth LED lens surface.
PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in LKEH-FA, FC and FD types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative!
Specifications
DIMENSIONS | – 100mm diameter |
RATED VOLTAGE | – 24V DC – 100V AC – 220V AC |
AUDIBLE STYLE | – LKEH-FE available only – Total of 32 pre-recorded sounds (See Specifications for sound list) – Arrange in 8 selectable sound groups – Each group has 4 pre-arranged sounds |
VOLUME | – Maximum 105dB at 1 meter with adjustable volume control |
BODY STYLE | – Pre-assembled, pre-wired only for module colors specified, lens interchangeable after purchase |
BODY COLOR | – Light gray |
GLOBE COLORS | – Red – Amber – Green – Blue – White |
GLOBE MATERIAL | – Polycarbonate Resin |
PROTECTION RATING | – IP53 |
OPTIONS | – SDV-2GP |
