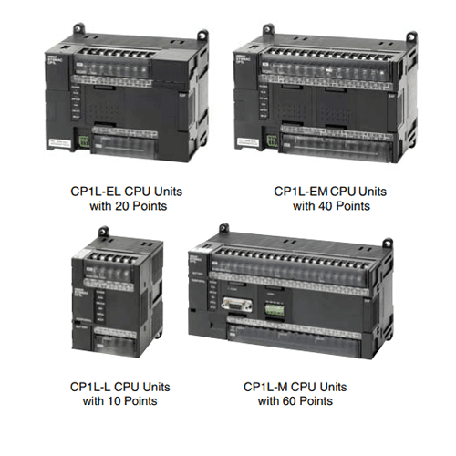

CP1L CPU Series

High Performing Programmable Controller with Embedded Ethernet

• \”CP1L-EM\” and \”CP1L-EL\” has a standard-feature Ethernet port.
• \”CP1L-M\” and \”CP1L-L\” has a standard-feature peripheral USB port.
• Function blocks (FB) allow you to build up modular structure and programming of ladder diagrams.


• \”CP1L-EM\” and \”CP1L-EL\” have complete with a Ethernet port.
• Pulse output for two axes. Advanced power for high-precision positioning control.
• High-speed Counters. Single-phase for four axes.
• Six interrupt inputs are built in. Faster processing of instructions speeds up the entire system.
• Serial Communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• \”CP1L-M\” and \”CP1L-L\” have a peripheral USB port.
• The Structured Text (ST) Language. Makes math operations even easier.
• Can be used for the CP1W series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.
