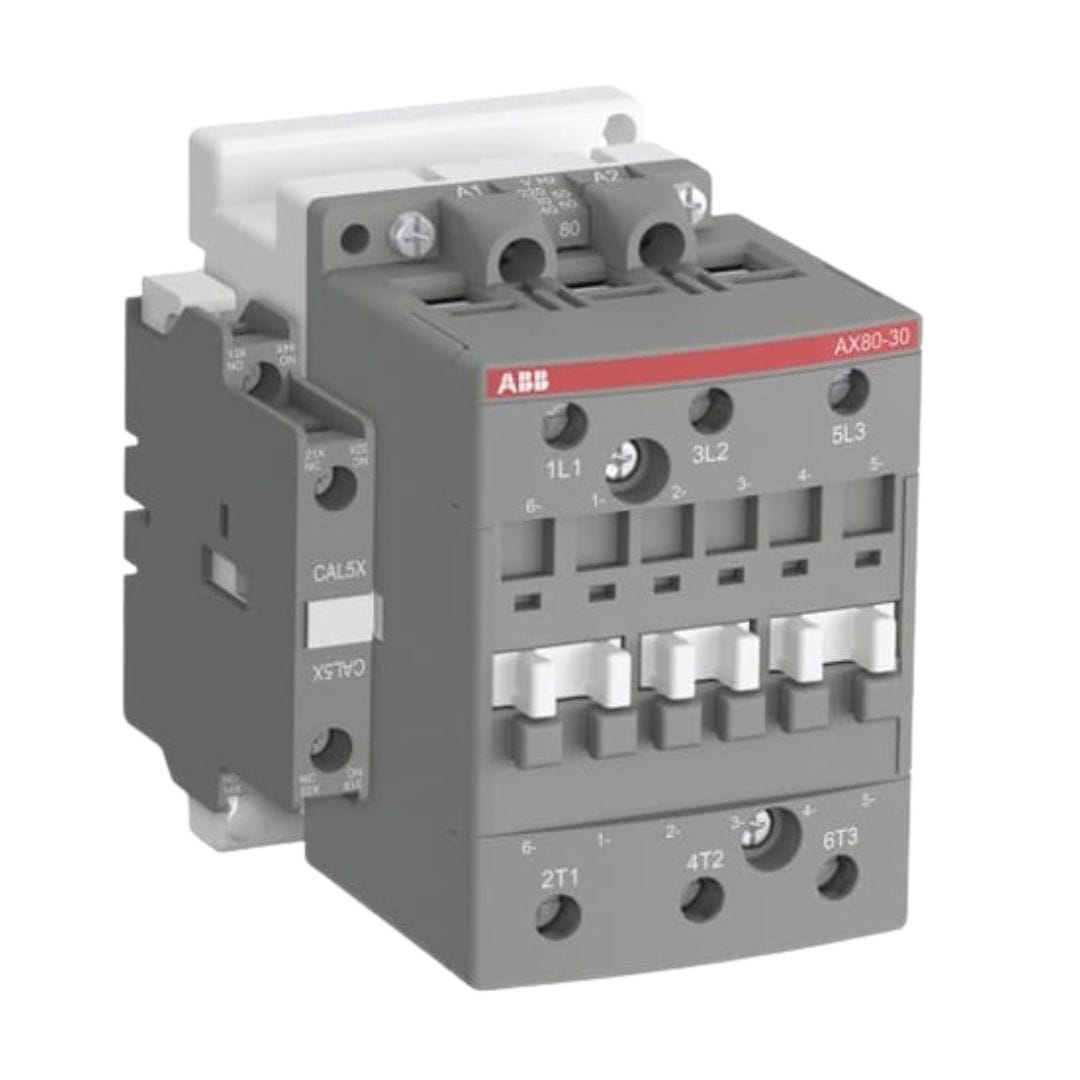

CONTACTOR AX80-30-11-80
AX50…AX80 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC.
These contactors are of the block type design with:
- 3 main poles
- control circuit: AC operated
- add-on auxiliary contact blocks (optional) for side mounting and a wide range of accessories.
Download Catalog Click Here!
| MAIN SPECIFICATION | |
|---|---|
| ABB Global ID | ABB1SBL411074R8011 |
| Business Area (Master Data) Name | Electrification |
| Catalog Description | AX80-30-11-80 220-230V50Hz/230-240V60Hz Contactor |
| Division (Master Data) Name | Smart Power |
| EAN | 3471522408808 |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 volt |
| SKU ID | 1SBL411074R8011 |
| TECHNICAL | |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 125 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour (AC-3) 600 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Operate Time | Between Coil De-energization and NC Contact Closing 7 … 14 ms Between Coil De-energization and NO Contact Opening 4 … 11 ms Between Coil Energization and NC Contact Opening 7 … 22 ms Between Coil Energization and NO Contact Closing 8 … 27 ms |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz Main Circuit 50 / 60 Hz |
| Rated Short-time Withstand Current (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 135 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 370 A for 1 s -empty- A |
| Terminal Type | Screw Terminals |
| TECHNICAL UL/CSA | |
| General Use Rating UL/CSA | (600 V AC) 105 A |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 7-1/2 Hp (240 V AC) Single Phase 15 Hp (200 … 208 V AC) Three Phase 25 Hp (220 … 240 V AC) Three Phase 30 Hp (440 … 480 V AC) Three Phase 60 Hp (550 … 600 V AC) Three Phase 75 Hp |
| Tightening Torque UL/CSA | Auxiliary Circuit 9 in·lb Control Circuit 9 in·lb Main Circuit 35 in·lb |
| ORDERING | |
| Minimum Order Quantity | 1 piece |
| ENVIRONMENTAL | |
| Climatic Withstand | acc. to IEC 60068-2-30 and 60068-2-11 – UTE C 63-100 specification II |
| Maximum Operating Altitude Permissible | 3000 m |
| RoHS Status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| CLASSIFICATIONS | |
| ETIM 6 | EC000066 – Power contactor, AC switching |
| ETIM 7 | EC000066 – Power contactor, AC switching |
| IDEA Granular Category Code (IGCC) | 4755 >> Contactors |
| Object Classification Code | Q |
| UNSPSC | 39121529 |
| OTHER | |
| Ambient Air Temperature | Close to Contactor for Storage -60 … +80 °C Close to Contactor Fitted with Thermal O/L Relay -25 … +55 °C Close to Contactor without Thermal O/L Relay -40 … +70 °C Near Contactor for Operation in Free Air -40 … +70 °C |
| Degree Of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Number Of Auxiliary Contacts NC | 1 |
| Number Of Auxiliary Contacts NO | 1 |
| Number Of Main Contacts NO | 3 |
| Product Net Width | 82 |
| Rated Control Circuit Voltage (Uc) | 50 Hz 220 … 230 V 60 Hz 230 … 240 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kilovolt |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 125 ampere (690 V) 70 °C 85 ampere (220 / 240 V) 55 °C 105 ampere |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 80 A (380 / 400 V) 55 °C 80 A (415 V) 55 °C 80 A (440 V) 55 °C 70 A (500 V) 55 °C 65 A (690 V) 55 °C 46 A |
| Rated Operational Power AC-3 (Pe) | (220 / 230 / 240 V) 22 kW (380 / 400 V) 37 kW (415 V) 40 kW (440 V) 40 kW (500 V) 45 kW (690 V) 40 kW |
| Rated Operational Voltage | Auxiliary Circuit 690 V Main Circuit 690 V |
