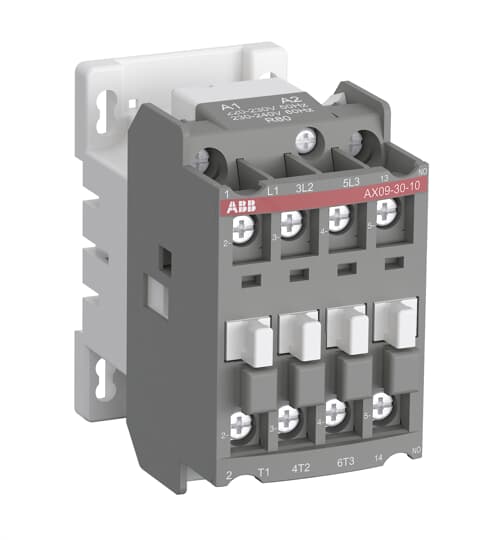

CONTACTOR AX12-30-10-80
AX09…AX25 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC.
These contactors are of the block type design with:
- 3 main poles and 1 built-in auxiliary contact
- control circuit: AC operated
- add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Download Catalog Click Here!
| MAIN SPECIFICATION | |
|---|---|
| ABB Global ID | ABB1SBL911074R8010 |
| Business Area (Master Data) Name | Electrification |
| Catalog Description | AX12-30-10-80 220-230V50Hz/230-240V60Hz Contactor |
| Division (Master Data) Name | Smart Power |
| EAN | 3471522393807 |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 volt |
| SKU ID | 1SBL911074R8010 |
| TECHNICAL | |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 26 A acc. to IEC 60947-5-1, q = 40 °C 16 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour (AC-15) 1200 cycles per hour (AC-3) 1200 cycles per hour (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Operate Time | Between Coil De-energization and NC Contact Closing 9 … 16 ms Between Coil De-energization and NO Contact Opening 4 … 11 ms Between Coil Energization and NC Contact Opening 7 … 21 ms Between Coil Energization and NO Contact Closing 10 … 26 ms |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz Main Circuit 50 / 60 Hz |
| Rated Operational Current AC-15 (Ie) | (220 / 240 V) 4 A (24 / 127 V) 6 A (400 / 440 V) 2 A (500 V) 2 A (690 V) 2 A (380 / 440 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (110 V) 1.1 A / 121 W (220 V) 0.55 A / 121 W (400 V) 2.8 A / 134 W (500 V) 2 A / 144 W (125 V) 1.1 A / 138 W (24 V) 6 A / 144 W (250 V) 0.55 A / 138 W |
| Rated Short-time Withstand Current (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 120 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 26 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 280 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 70 A for 0.1 s 140 A for 1 s 100 A |
| Terminal Type | Screw Terminals |
| TECHNICAL UL/CSA | |
| General Use Rating UL/CSA | (600 V AC) 25 A |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 3/4 Hp (240 V AC) Single Phase 2 Hp (200 … 208 V AC) Three Phase 3 Hp (220 … 240 V AC) Three Phase 3 Hp (440 … 480 V AC) Three Phase 7.5 Hp (550 … 600 V AC) Three Phase 10 Hp |
| Tightening Torque UL/CSA | Auxiliary Circuit 9 in·lb Control Circuit 9 in·lb Main Circuit 9 in·lb |
| ORDERING | |
| Minimum Order Quantity | 1 piece |
| ENVIRONMENTAL | |
| Climatic Withstand | acc. to IEC 60068-2-30 and 60068-2-11 – UTE C 63-100 specification II |
| Maximum Operating Altitude Permissible | 3000 m |
| RoHS Status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| CLASSIFICATIONS | |
| E-Number (Finland) | 3707314 |
| ETIM 6 | EC000066 – Power contactor, AC switching |
| ETIM 7 | EC000066 – Power contactor, AC switching |
| IDEA Granular Category Code (IGCC) | 4755 >> Contactors |
| Object Classification Code | Q |
| UNSPSC | 39121529 |
| OTHER | |
| Ambient Air Temperature | Close to Contactor for Storage -60 … +80 °C Close to Contactor Fitted with Thermal O/L Relay -25 … +55 °C Close to Contactor without Thermal O/L Relay -40 … +70 °C Near Contactor for Operation in Free Air -40 … +70 °C |
| Degree Of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Number Of Auxiliary Contacts NO | 1 |
| Number Of Main Contacts NO | 3 |
| Product Net Width | 44 |
| Rated Control Circuit Voltage (Uc) | 50 Hz 220 … 230 V 60 Hz 230 … 240 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kilovolt |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 25 ampere (690 V) 70 °C 18 ampere (220 / 240 V) 55 °C 22 ampere |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 12 A (380 / 400 V) 55 °C 12 A (415 V) 55 °C 12 A (440 V) 55 °C 9 A (500 V) 55 °C 9 A (690 V) 55 °C 7 A |
| Rated Operational Power AC-3 (Pe) | (220 / 230 / 240 V) 3 kW (380 / 400 V) 5.5 kW (415 V) 5.5 kW (440 V) 4 kW (500 V) 5.5 kW (690 V) 5.5 kW |
| Rated Operational Voltage | Auxiliary Circuit 690 V Main Circuit 690 V |
