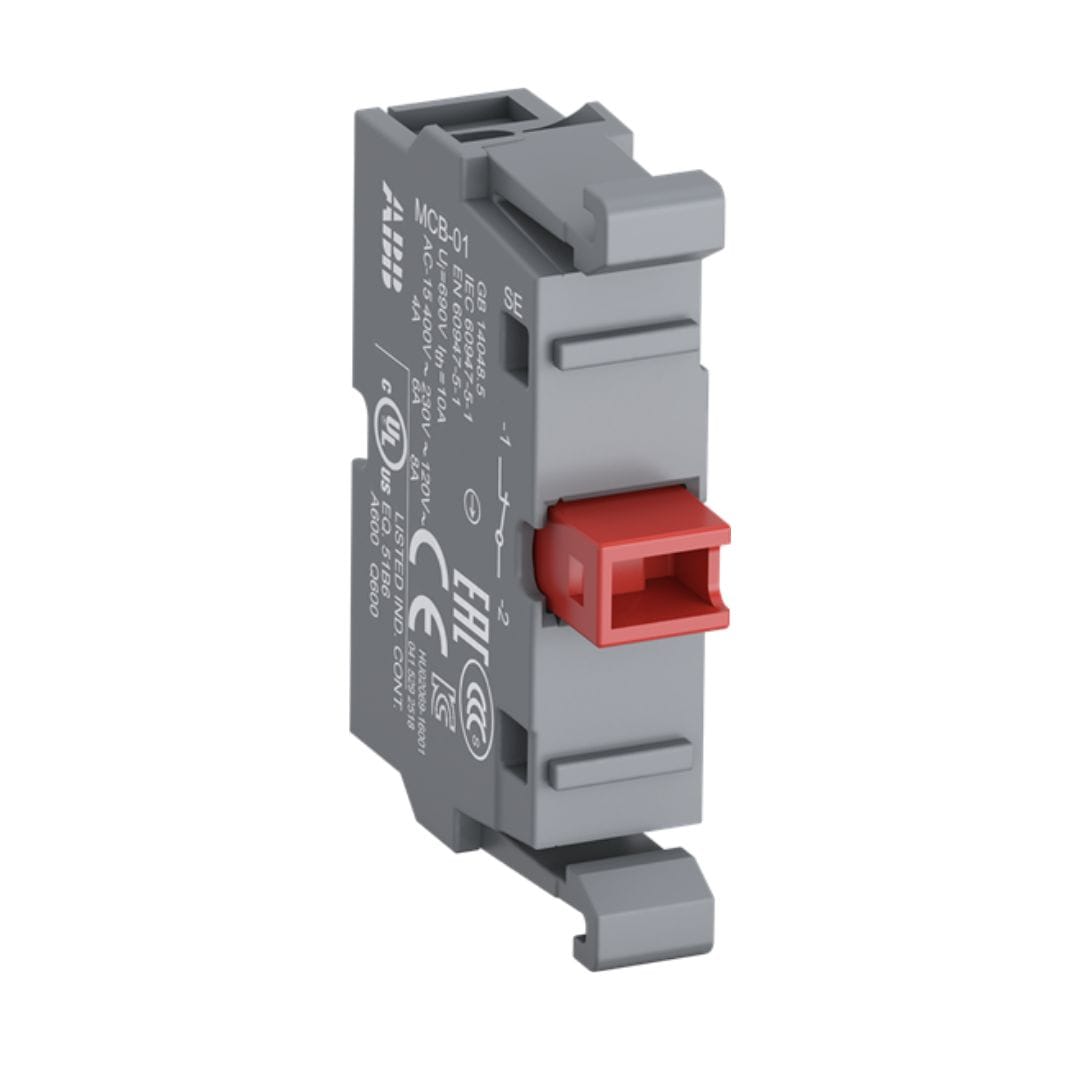

CONTACT BLOCK #MCB-01
The MCB-01 Contact Block is:
- Non-illuminated
- Single contact block
- Front mounting – silver (Ag)
- 0 NO – 1NC – 690 V
This Contact Block is part of ABB’s modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability.
Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments.
The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.
Download Catalog Click Here!
Read More:
| MAIN SPECIFICATION | |
|---|---|
| ABB Global ID | ABB1SFA611610R1010 |
| Business Area (Master Data) Name | Electrification |
| Catalog Description | CONTACT BLOCK MCB-01 |
| Division (Master Data) Name | Smart Power |
| EAN | 7320500544341 |
| SKU ID | 1SFA611610R1010 |
| TECHNICAL | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 … 2.5 mm² Flexible with Insulated Ferrule 1x 0.75 … 2.5 mm² Flexible with Insulated Ferrule 2x 0.75 … 2.5 mm² Flexible 1 x 0.75 … 2.5 mm² Flexible 2 x 0.75 … 2.5 mm² Solid 1 x0.75…2.5 mm² Solid 2 x0.75…2.5 mm² |
| Mechanical Durability | 10 million |
| Power Loss | Maximum 2.5 W |
| Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 5 A (125 V) 1.1 A |
| RoHS Date | 0635 4 |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| ORDERING | |
| Minimum Order Quantity | 10 piece |
| ENVIRONMENTAL | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| CLASSIFICATIONS | |
| E-Number (Finland) | 2315704 |
| E-Number (Norway) | 4373186 |
| E-Number (Sweden) | 3714006 |
| EClass | V11.0 : 27371302 |
| ETIM 4 | EC002024 – Accessories for control circuit devices |
| ETIM 5 | EC000041 – Auxiliary contact block |
| ETIM 6 | EC000041 – Auxiliary contact block |
| ETIM 7 | EC000041 – Auxiliary contact block |
| Object Classification Code | S |
| UNSPSC | 39121500 |
| WEEE B2C / B2B | Business To Business |
| OTHER | |
| Ambient Air Temperature | Operation -25 … +70 °C Storage -40 … +85 °C |
| Degree Of Protection | Terminals IP20 |
| Function | Without holder |
| Illumination | Non-illuminated |
| Mounting Type | Front mounting |
| Number Of Auxiliary Contacts NC | 1 |
| Product Net Width | 0.01 |
| Rated Operational Voltage | Maximum 690 V AC/DC |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
