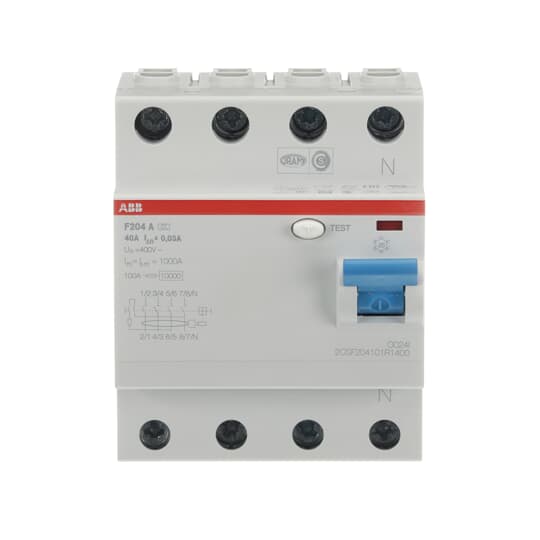

F204 A-40/0.03

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Download Catalog Click Here!

MAIN SPECIFICATION
ABB Global ID ABB2CSF204401R1400
Business Area (Master Data) Name Electrification
Catalog Description F204 A-40/0,03 AP-R Residual Current Circuit Breaker
Division (Master Data) Name Smart Buildings
EAN 8012542785507
Rated Insulation Voltage (Ui) 500 volt
SKU ID 2CSF204401R1400
TECHNICAL
Accessories Available Yes
Connecting Capacity Busbar 10 mm²
Rigid 25 … 25 mm²
Flexible 25 … 25 mm²
Electrical Endurance 10000 cycle
Maximum Surge Current 3 kA
Operating Characteristic Instantaneous (APR High Immunity)
Options Provided None
Pollution Degree 2
Position Of Neutral Terminals Right
Power Loss at Rated Operating Conditions per Pole 3.2 W
Power Supply Connection Arbitrary
Product Name Residual Current Circuit Breaker
Rated Cross-Section 4 – Multi-Wired 0…25 mm²
1 – Solid-Core 25…25 mm²
Rated Frequency (f) 50 / 60 Hz
Standards IEC/EN 61008
UL 1053
TECHNICAL UL/CSA
Maximum Operating Voltage UL/CSA 480Y / 277 V AC
Short-Circuit Current Rating (SCCR) 0.03 A
DIMENSIONS
Built-In Depth (t2) 69 mm
ORDERING
Minimum Order Quantity 1 piece
Selling Unit Of Measure piece
ENVIRONMENTAL
Ambient Temperature -25…55 °C
RoHS Status Following EU Directive 2011/65/EU
CLASSIFICATIONS
CN8 85363030
E-Number (Finland) 3259688
E-Number (Sweden) 2160178
EPLAN Catalog Tree Electrical engineering / Protection devices / Ground fault current circuit breaker
EPLAN Function Definition Ground fault current circuit-breaker / Ground fault current circuit breakers, 8 connection points / Ground fault current circuit breaker, four-pole 1_2_3_4_5_6_N_N.
ETIM 6 EC000003 – Residual current circuit breaker (RCCB)
ETIM 7 EC000003 – Residual current circuit breaker (RCCB)
ETIM 8 EC000003 – Residual current circuit breaker (RCCB)
Object Classification Code F
WEEE B2C / B2B Business To Consumer
OTHER
Ambient Air Temperature Operation -25…55 °C
Degree Of Protection IP2X
Input Voltage Type AC
Leakage Current Type A
Mounting Type DIN rail
Number Of Poles 4
Product Net Width 0.07
Rated Conditional Short-Circuit Current (Inc) 10 kA
Rated Current (In) 40 A
Rated Impulse Withstand Voltage (Uimp) 4 kilovolt
Rated Operational Voltage 230/400 V
Rated Residual Current 30 mA
Rated Service Short-Circuit Breaking Capacity (Ics) 1 kA
Rated Voltage (Ur) 230/400 V
Type Of Residual Current A type
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
Width In Number Of Modular Spacings 4
