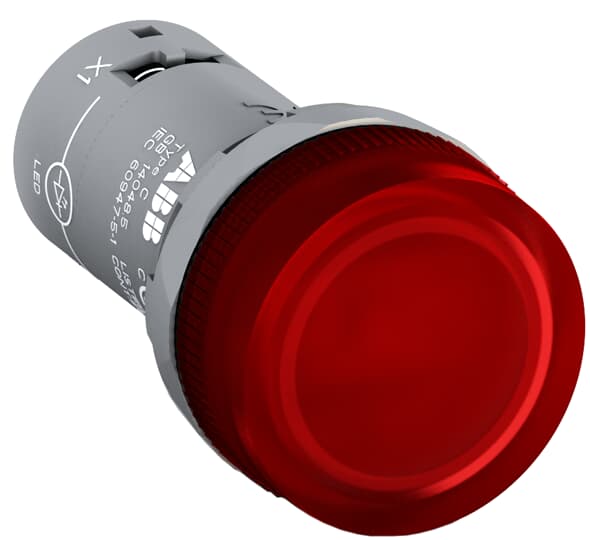

COMPACT LED PILOT LIGHT (CL2-523R)
Features and Benefits
- High IP ratings
- Panel Front Protection = IP66 IP67 IP69
- Terminal Protection = IP20
- Major international standards
- Variety of colours – Red, Green, Yellow, Blue, Clear
- UV stabilization
- Service life of +/- 50,000 hours operating at 25°C, 40∼70%rh
- Operating Temperature -25 to +85
- Flammability of material of current carrier – V2 (halogen and phosphorous free)
- Panel Thickness – 1 to 6 mm
- Screw Terminal PZ2
Model Specifications
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.052 m |
| Product Net Weight | 0.018 kg |
| Ambient Air Temperature | Operation -25 … +70 °C Storage -40 … +85 °C |
| Color | Red |
| Actuator Type | Pilot light head |
| Illumination | Illuminated |
| Lamp Type | 230 V AC, integrated LED |
| Degree of Protection | Front IP66 Front IP67 Front IP69K Terminals IP20 |
| Enclosure Type NEMA | Type1 Type12 Type13 Type3R Type4 Type4X |
| Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| CB Certificate | CQC_CN_CN50749 |
| CQC Certificate | CQC2003010305054693 |
| EAC Certificate | EAC-RU C-CN.ME77.B.00690_20 |
