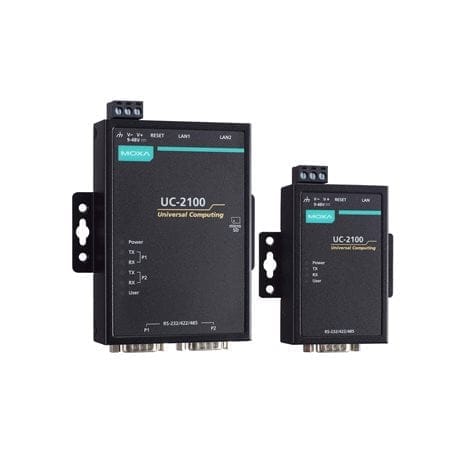

UC-2100 Series

Arm Cortex-A8 600 MHz palm-sized IIoT gateway with 1 mini PCIe expansion slot for a wireless module

The UC-2100 Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software selectable RS-232/422/485 full-signal serial ports and single or dual Ethernet ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as single or dual serial and Ethernet ports, Gigabit Ethernet, and wireless connections. These versatile communication capabilities allow users to efficiently adapt the UC‑2100 for a variety of complex communications solutions.

Product Features

• Armv7 Cortex-A8 600-1000 MHz processor
• 1 or 2 auto-sensing 10/100 Mbps Ethernet ports
• Gigabit Ethernet supported (UC-2112)
• Up to 2 software-selectable RS-232/422/485 ports supporting all signals
• Moxa Industrial Linux with 10-year superior long-term support
• microSD socket for storage expansion (UC-2111, UC-2112)
• Mini PCIe socket for Wi-Fi/cellular module (UC-2104)
• -40 to 75°C wide-temperature model available with hazardous locations certification
