RH-A 100mm Rotating

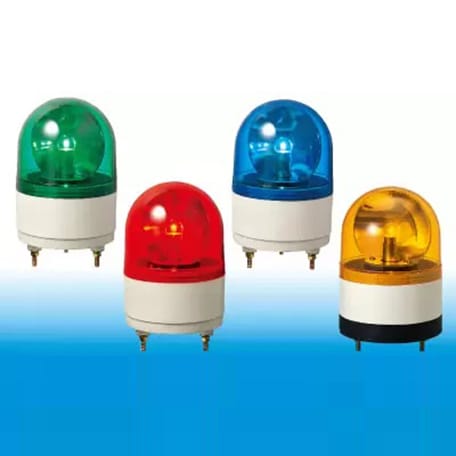

The RH-A / RHB-A Series is a small-size, versatile, durable, and compact revolving light with a dome lens. The terminal block allows easy wiring
Product Features
- Rotating Parabolic Reflector: For enhanced visibility from a distance.
- Extended Bulb Life: Vibration-resistant automobile bulb.
- Built-in Alarm: Built-in audible alarm up to 90dB at 1m for RHB/RKB.
- Installation: Indoors—upright, inverted, sideways; Outdoors—upright only.
- Terminal Block: For easy wiring.
- Main Body: Impact and heat resistant ABS resin.
- Dome: Superior impact and heat resistant polycarbonate resin.
- CE Compliant: 12V DC, 24V DC type only.
- Available Colors: Red, Amber, Green, Blue.
- AUL type comes with rubber gasket SZ-200A.
Model Specifications
| DIMENSIONS | 100mm diameter |
| RATED VOLTAGE | 12V DC 24V DC 100V AC 120V AC 200V AC 240V AC |
| FUNCTIONS | Rotating Rotating with Alarm |
| MOUNTING | Direct Mount – Indoors Only (Upright, Inverted, Sideways) |
| BODY STYLE | Round base Round top, colored dome Pre-assembled, pre-wired SZ-200A (Included with RHA-AUL Only) |
| BODY COLOR | Body: Beige |
| GLOBE COLOR | Light Source: Bulb Dome Colors: Red / Amber / Green / Blue |
| GLOBE MATERIAL | Polycarbonate Resin |
| AUDIBLE STYLE | RHB-AUL: 1 built-in alarm, 90dB (at 1m) |
| CONFORMITY STANDARDS | CE Marking (12V DC, 24V DC only) UL Listed (24AUL, 120AUL, 240AUL type Only) c-UL Listed (24AUL, 120AUL, 240AUL type Only) |
| PROTECTION RATING | IP-55 with SZ-200A gasket properly installed |
| OPTIONS | SZ-30T SZ-30L SZ-007 SZ-200A (Included with RHB-AUL Only) |
