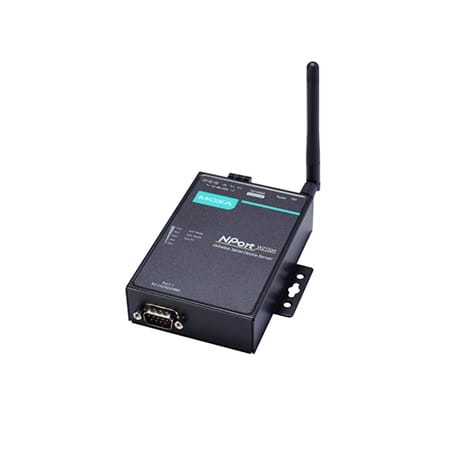

NPORT W2150A-EU
1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, 0 to 55°C operating temperature, with EU plug
| Ethernet Interface | |
|---|---|
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) |
| Ethernet Software Features | |
| Configuration Options | Web Console (HTTP/HTTPS), Windows Utility |
| Management | DHCP Option 82, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, Web Console |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
| MIB | Device Settings MIB, RFC1213, RFC1317 |
| Security | HTTPS/SSL, User Authentication Management: local database, RADIUS, Secure Protocols: HTTPS (TLSv1.2), SSH, SNMPv3, Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256 |
| Time Management | NTP Client, SNTP Client |
| WLAN Interface | |
| WLAN Standards | 802.11a/b/g/n |
| Receiver Sensitivity for 802.11a (measured at 5.680 GHz) | Typ. -91 @ 6 Mbps Typ. -74 @ 54 Mbps |
| Receiver Sensitivity for 802.11b (measured at 2.437 GHz) | Typ. -92 dBm @ 1 Mbps Typ. -84 dBm @ 11 Mbps |
| Receiver Sensitivity for 802.11g (measured at 2.437 GHz) | Typ. -91 dBm @ 6 Mbps Typ. -73 dBm @ 54 Mbps |
| Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz) | Typ. -89 dBm @ 6.5 Mbps (20 MHz) Typ. -71 dBm @ 72.2 Mbps (20 MHz) |
| Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz) | Typ. -89 dBm @ 6.5 Mbps (20 MHz) Typ. -71 dBm @ 72.2 Mbps (20 MHz) Typ. -85 dBm @ 13.5 Mbps (40 MHz) Typ. -67 dBm @ 150 Mbps (40 MHz) |
| Modulation Type | DSSS OFDM |
| Transmission Distance | Up to 100 meters (in open areas) |
| Transmission Rate | 802.11a/g: 54 Mbps 802.11b: 11 Mbps 802.11n: 6.5 to 150 Mbps |
| Transmitter Power for 802.11b | 16±1.5 dBm @ 1 Mbps 16±1.5 dBm @ 11 Mbps |
| Transmitter Power for 802.11g | 16±1.5 dBm @ 6 Mbps 14±1.5 dBm @ 54 Mbps |
| Transmitter Power for 802.11a | 15±1.5 dBm @ 6 Mbps 14±1.5 dBm @ 54 Mbps |
| Transmitter Power for 802.11n (2.4 GHz) | 16 dBm @ 1.5 Mbps (6.5 MHz) 12 dBm @ 1.5 Mbps (72.2 MHz) |
| Transmitter Power for 802.11n (5 GHz) | 15 dBm @ 1.5 Mbps (6.5 MHz) 12 dBm @ 1.5 Mbps (150 MHz) |
| Frequency Band for CN (20 MHz operating channels) | 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.745 to 5.825 GHz (5 channels) |
| Frequency Band for EU (20 MHz operating channels) | 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) |
| Frequency Band for JP (20 MHz operating channels) | 2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) |
| Frequency Band for US (20 MHz operating channels) | 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) 5.500 to 5.700 GHz (11 channels) 5.745 to 5.825 GHz (5 channels) |
| Wireless Security | WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal |
| WLAN Modes | Ad-hoc Mode, Infrastructure mode |
| Antenna Characteristics | |
| Connector | RP-SMA (male) |
| Antenna Type | Omni-directional |
| Serial Interface | |
| Connector | DB9 male |
| No. of Ports | 1 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Operation Modes | Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Pair Connection mode, Ethernet Modem mode, Disabled |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| Surge | 1 kV |
| Physical Characteristics | |
| Housing | Metal |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
| Dimensions (with ears, without antenna) | 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in) |
| Dimensions (without ears or antenna) | 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in) |
| Weight | 547 g (1.21 lb) |
| Antenna Length | 109.79 mm (4.32 in) |
| Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Power Parameters | |
| Input Current | 179 mA @ 12 VDC |
| Input Voltage | 12 to 48 VDC |
| Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Radio Frequency | CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301 489-17, ETSI EN 301 489-1), ARIB RCR STD-33, ARIB STD-66 |
| Reliability | |
| Alert Tools | RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT |
| MTBF | |
| Time | 383,187 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
| Warranty | |
| Warranty Period | 5 years |
