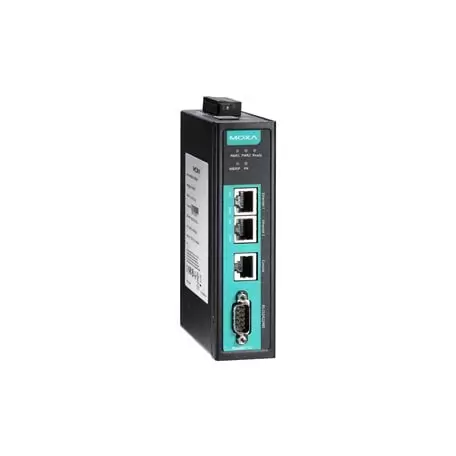

MGATE 5103

1-port Modbus RTU/ASCII/TCP/EtherNet/IP-to-PROFINET gateways

The MGate 5103 is an industrial Ethernet gateway for converting Modbus RTU/ASCII/TCP or EtherNet/IP to PROFINET-based network communications. To integrate existing Modbus devices onto a PROFINET network, use the MGate 5103 as a Modbus master/slave or EtherNet/IP adapter to collect data and exchange data with PROFINET devices. The latest exchange data will be stored in the gateway. The gateway will convert stored Modbus or EtherNet/IP data into PROFINET packets so the PROFINET IO Controller can control or monitor field devices.

Product Features

• Converts Modbus, or EtherNet/IP to PROFINET
• Supports PROFINET IO device
• Supports Modbus RTU/ASCII/TCP master/client and slave/server
• Supports EtherNet/IP Adapter
• Effortless configuration via web-based wizard
• Built-in Ethernet cascading for easy wiring
• Embedded traffic monitoring/diagnostic information for easy troubleshooting
• microSD card for configuration backup/duplication and event logs
• Status monitoring and fault protection for easy maintenance
• Serial port with 2 kV isolation protection
• -40 to 75°C wide operating temperature models available
• Supports redundant dual DC power inputs and 1 relay output
• Security features based on IEC 62443
