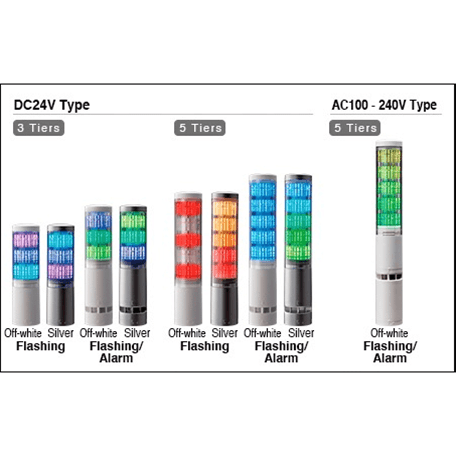

LA6 Series 60mm Smart LED Signal Tower Lights
The first programmable signal tower designed to replace standard stack lights. The 60mm LA6 features 21 colors, 11 alarms, and a field programming interface, all in a single part number.
Read More:
Product Features
-
- Unique programming interface for selecting any combination of 21 distinct colors.
-
- Single part number – streamlines your supply chain.
-
- Smart Mode allows users to create light motion patterns to more clearly define more complex equipment statuses.
-
- USB port to locally program device.
-
- Available in 24V DC and 100-240V AC (M2 type)
Model Specifications
| DIMENSIONS | – 60mm Diameter |
|---|---|
| RATED VOLTAGE | – 24V DC – 100-240V AC （WJ Type Only） |
| FUNCTIONS | Operates in three different display modes: – Single Display – Time-trigger Display – Pulse-trigger Display |
| MOUNTING | – Direct Mounting (TN, WJ Type) – Steel Pole Mounting (LJ Type) |
| BODY STYLE | – TN : Screwless Terminal – LJ : Pole with Cable Connection – WJ : Direct Mount with Cable Connection |
| BODY COLOR | – Off-white – Silver |
| STACKABLE TIERS | – 3 Tier – 5 Tier |
| MODULE COLORS | 21 colors |
| AUDIBLE STYLE | 11 alarm sounds available |
| CONFORMITY STANDARDS | – EMC Directive – RoHS Conformity – UL 508 – FCC – KC – CE |
| PROTECTION RATING | – IP 65 – IP54 with Alarm |
| REMARKS | – Free downloadable application software – UL Recognized Components (24V type only) |
