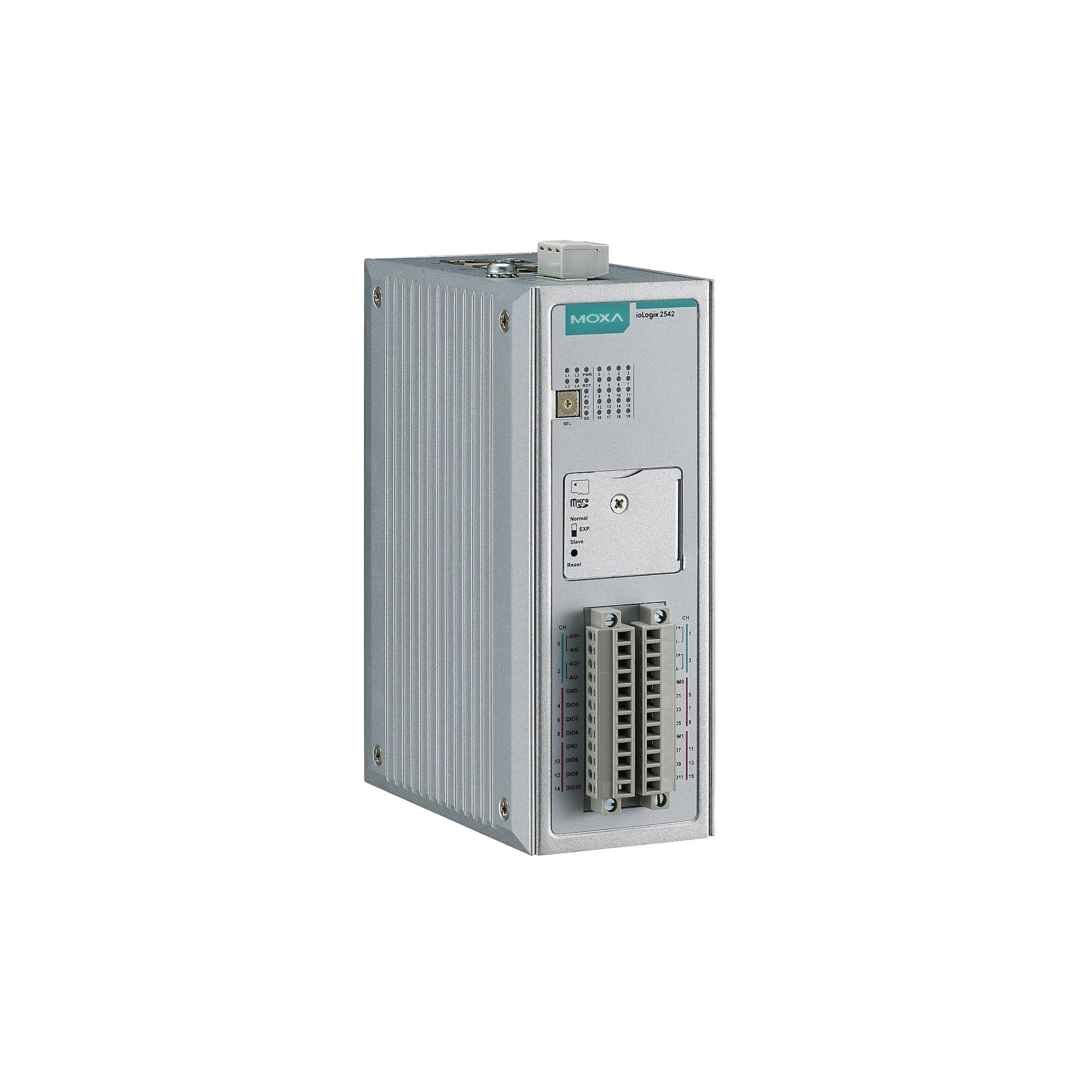

IOLOGIK 2512

Universal controller, 8 DIs, 8 DIOs, Click&Go Plus, -10 to 60°C operating temperature

  • Memory
    • microSD Slot
      • Up to 32 GB (SD 2.0 compatible)
        Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
  • Control Logic
    • Language
      • Click&Go Plus
  • Input/Output Interface
    • Digital Input Channels
      • 8
    • Configurable DIO Channels (by software)
      • 8
    • Buttons
      • Reset button
    • Isolation
      • 3k VDC or 2k Vrms
  • Digital Inputs
    • Connector
      • Screw-fastened Euroblock terminal
    • Sensor Type
      • Dry contact Wet contact (NPN or PNP)
    • I/O Mode
      • DI or event counter
    • Dry Contact
      • On: short to GND Off: open
    • Wet Contact (DI to COM)
      • On: 10 to 30 VDC Off: 0 to 3 VDC
    • Counter Frequency
      • 2.5 kHz
    • Digital Filtering Time Interval
      • Software configurable
    • Points per COM
      • 8 channels
  • Digital Outputs
    • Connector
      • Screw-fastened Euroblock terminal
    • I/O Type
      • Sink
    • I/O Mode
      • DO or pulse output
    • Current Rating
      • 500 mA per channel
    • Pulse Output Frequency
      • 5 kHz (max.)
    • DIO Output Leakage Current
      • < 1 mA @ 30 VDC
    • Over-Current Protection
      • 1.5 A per channel @ 25°C
    • Over-Temperature Shutdown
      • 175°C (typical), 150°C (min.)
    • Over-Voltage Protection
      • 45 VDC (typical)
  • Ethernet Interface
    • 10/100BaseT(X) Ports (RJ45 connector)
      • 4, 1 MAC address (Ethernet bypass)
    • Magnetic Isolation Protection
      • 1.5 kV (built-in)
  • Ethernet Software Features
    • Configuration Options
      • Web Console (HTTP/HTTPS), Windows Utility (IOxpress)
    • Industrial Protocols
      • CGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c Trap
    • Management
      • BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
    • MIB
      • Device Settings MIB
    • Security
      • HTTPS/SSL
    • Time Management
      • SNTP
  • LED Interface
    • LED Indicators
      • PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
  • Serial Interface
    • Baudrate
      • 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
    • Connector
      • 8-pin RJ45
    • Data Bits
      • 5, 6, 7, 8
    • Flow Control
      • None, RTS/CTS, XON/XOFF
    • No. of Ports
      • 2
    • Parity
      • None, Even, Odd
    • Serial Standards
      • RS-232, RS-422, RS-485
    • Stop Bits
      • 1, 2
  • Serial Signals
    • RS-232
      • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    • RS-422
      • Tx+, Tx-, Rx+, Rx-, GND
    • RS-485-2w
      • Data+, Data-, GND
    • RS-485-4w
      • Tx+, Tx-, Rx+, Rx-, GND
  • Serial Software Features
    • Industrial Protocols
      • Modbus RTU Master
  • Platform
    • Real-time Clock (RTC)
      • Real-time clock with capacitor backup
  • Power Parameters
    • Power Connector
      • Screw-fastened Euroblock terminal
    • No. of Power Inputs
      • 1
    • Input Voltage
      • 12 to 48 VDC
    • Power Consumption
      • 254 mA @ 24 VDC
        529 mA @ 12 VDC
        133 mA @ 48 VDC
  • Physical Characteristics
    • Housing
      • Metal
    • IP Rating
      • IP30
    • Dimensions
      • 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
    • Weight
      • 1,265 g (2.79 lb)
    • Installation
      • DIN-rail mounting, Wall mounting (with optional kit)
    • Wiring
      • I/O cable, 16 to 26 AWG
        Power cable, 12 to 24 AWG
  • Environmental Limits
    • Operating Temperature
      • -10 to 60°C (14 to 140°F)
    • Storage Temperature (package included)
      • -40 to 85°C (-40 to 185°F)
    • Ambient Relative Humidity
      • 5 to 95% (non-condensing)
    • Altitude
      • 2000 m
  • Standards and Certifications
    • EMC
      • EN 61000-6-2/-6-4
    • EMI
      • CISPR 32, FCC Part 15B Class A
    • EMS
      • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
        IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
        IEC 61000-4-6 CS: 3 V
        IEC 61000-4-8 PFMF
        IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
        IEC 61000-4-5 Surge: Power: 1 kV
    • Vibration
      • IEC 60068-2-6
    • Shock
      • IEC 60068-2-27
    • Freefall
      • IEC 60068-2-32
    • Hazardous Locations
      • ATEX, Class I Division 2
    • Safety
      • UL 508
  • Declaration
    • Green Product
      • RoHS, CRoHS, WEEE
  • MTBF
    • Time
      • 467,032 hrs
    • Standards
      • Telcordia SR332
  • Warranty
    • Warranty Period
      • 5 years
