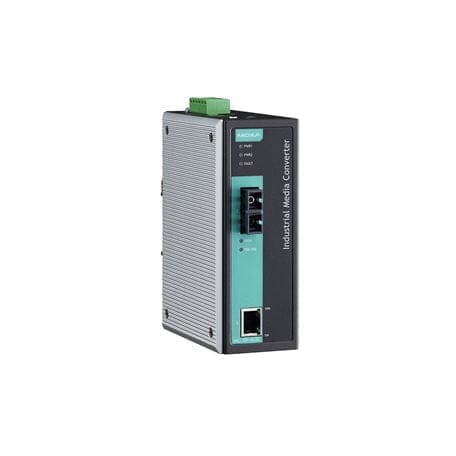

IMC-101-M-SC

• 10/100BaseT(X) Ports (RJ45 connector)

  • 1

• 100BaseFX Ports (multi-mode SC connector)

  • 1

• Magnetic Isolation Protection

  • 1.5 kV (built-in)

• Optical Fiber

• Optical Fiber

  • Read more



Power Parameters

• Input Current

  • 200 mA @ 12 to 45 VDC

• Input Voltage

  • 12 to 45 VDC

• Overload Current Protection

  • Supported

• Power Connector

  • Terminal block

• Power Consumption

  • 200 mA @ 12 to 45 VDC

Physical Characteristics

• IP Rating

  • IP30

• Housing

  • Metal

• Dimensions

  • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

• Weight

  • 630 g (1.39 lb)

• Installation

  • DIN-rail mounting

Environmental Limits

• Operating Temperature

  • 0 to 60°C (32 to 140°F)

• Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032/24

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

• Environmental Testing

  • IEC 60068-2-1
    IEC 60068-2-2
    IEC 60068-2-3

• Safety

  • EN 60950-1, UL 60950-1

• Vibration

  • IEC 60068-2-6

• Hazardous Locations

  • ATEX Zone 2, UL/cUL Class I Division 2 Groups A/B/C/D

• Maritime

  • DNV

MTBF

• Time

  • 401,000 hrs

• Standards

  • MIL-HDBK-217F

Warranty

• Warranty Period

  • 5 years
