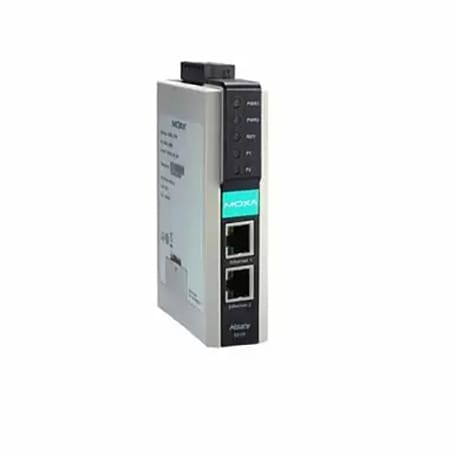

MGATE 5217I-600-T

2 port Modbus-to-BACnet/IP gateway, 600 points, 2kV isolation, 12 to 48 VDC, 24 VAC, -40 to 75°C

ETHERNET INTERFACE

  • 10/100BaseT(X) Ports (RJ45 connector): 2 – Auto MDI/MDI-X connection
  • Magnetic Isolation Protection: 1.5 kV (built-in)

ETHERNET SOFTWARE FEATURES

  • Industrial Protocols: Modbus TCP Client (Master), BACnet/IP Server (Slave)
  • Configuration Options: Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console
  • Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client
  • MIB: RFC1213, RFC1317
  • Time Management: NTP Client

SERIAL INTERFACE

  • No. of Ports: 2
  • Connector:  DB9 male
  • Serial Standards: RS-232/422/485
  • Baudrate: 50 bps to 921.6 kbps
  • Data Bits: 7, 8
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 2
  • Flow Control: RTS Toggle (RS-232 only), RTS/CTS, DTR/DSR
  • RS-485 Data Direction Control: ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Isolation: 2 kV (built-in)

SERIAL SIGNALS

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

SERIAL SOFTWARE FEATURES

  • Industrial Protocols: Modbus RTU/ASCII Master

MODBUS RTU/ASCII

  • Mode: Master
  • Functions Supported: 1, 2, 3, 4, 5, 6, 16
  • Max. No. of Commands: 600 (up to 300 commands/per serial port)

MODBUS TCP

  • Mode: Client (Master)
  • Functions Supported: 1, 2, 3, 4, 5, 6, 16
  • Max. No. of Server Connections: 32
  • Max. No. of Commands: 600

BACNET/IP

  • Mode: Server (Slave)
  • Memory Size: 600 points

Supported BACnet Object

  • Binary Input
  • Binary Output
  • Binary Value
  • Analog Input
  • Analog Output
  • Analog Value
  • Multi-state Input
  • Multi-state Output
  • Multi-state Value
  • Integer Value
  • Positive Integer Value

POWER PARAMETERS

  • Input Voltage: 24 VAC, 12 to 48 VDC
  • Input Current: 300 mA @ 24 VAC | 510 mA @ 12 VDC
  • Power Connector: Screw-fastened Euroblock terminal

RELAYS

  • Contact Current Rating: Resistive load: 1 A @ 30 VDC

PHYSICAL CHARACTERISTICS

  • Housing: Plastic
  • IP Rating: IP30
  • Dimensions (without ears): 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
  • Dimensions (with ears): 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
  • Weight: 380 g (0.84 lb)

ENVIRONMENTAL LIMITS

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

STANDARDS AND CERTIFICATIONS

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS
    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    • IEC 61000-4-5 Surge: Power: 2 kV
    • IEC 61000-4-6 CS: 10 V
    • IEC 61000-4-8 PFMF
    • IEC 61000-4-11 DIPs
  • Safety: UL 62368-1, IEC 62368-1
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6, IEC 60068-2-64

MTBF

  • Time: 1,277,500 hrs
  • Standards: Telcordia SR332
