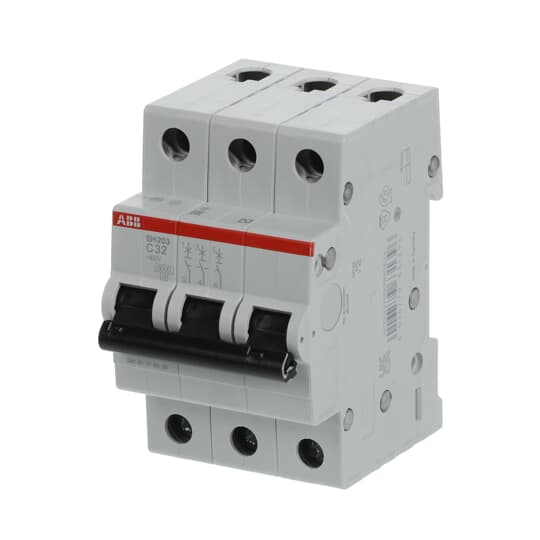

MCB SH203-C32

Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.

They are available in different characteristics (B,C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.

Download Catalog Click Here!

Model Specifications

Standards IEC/EN 60898-1
Tripping Characteristic C
Rated Impulse Withstand Voltage (Uimp) 4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
Rated Short-Circuit Capacity (AC) 6 kA
(400 V AC) 6 kA
(400 V) 6 kA
Contact Position Indication ON / OFF
Ambient Air Temperature Operation -25 … +55 °C
Storage -40 … +70 °C
Reference Ambient Air Temperature 30 °C
Product Net Width 52.5 mm
Product Net Height 85 mm
Package Level 1 Gross Weight 0.39 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm
Certification Agency EN
IEC
Declaration of Conformity – CE 2CDK400607D2703
Classification EC000042 – Miniature circuit breaker (MCB)
WEEE B2C / B2B Business To Business
Ordering carton 1 piece
