FR-XAH
11/01/2024
FR-XSH
11/01/2024
FR-XSH
CU / MGT / XLPE / LSZH / SWA / LSZH ( 2 CORES – 5 CORES )

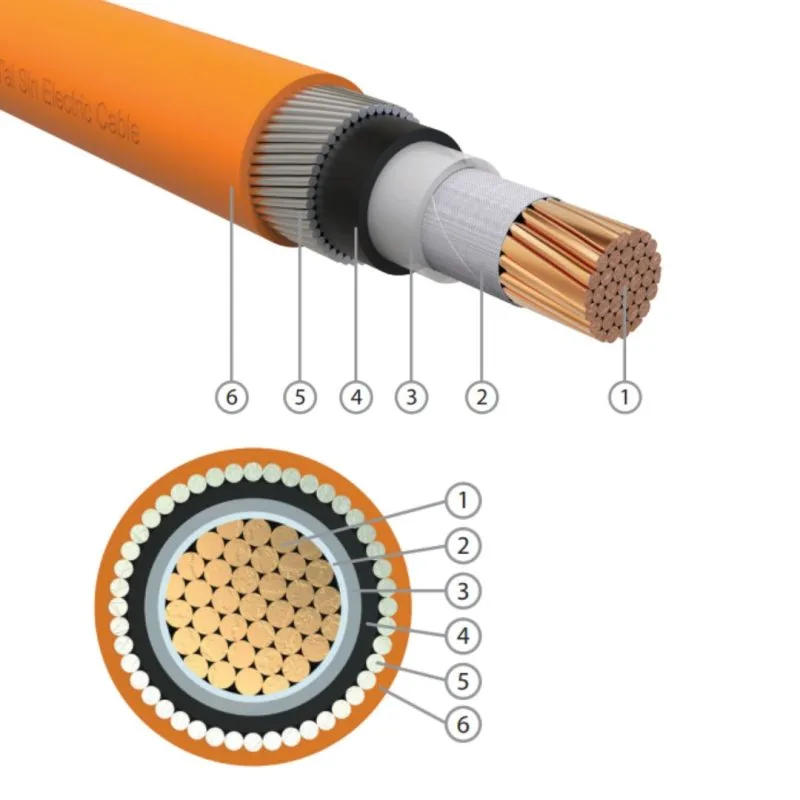

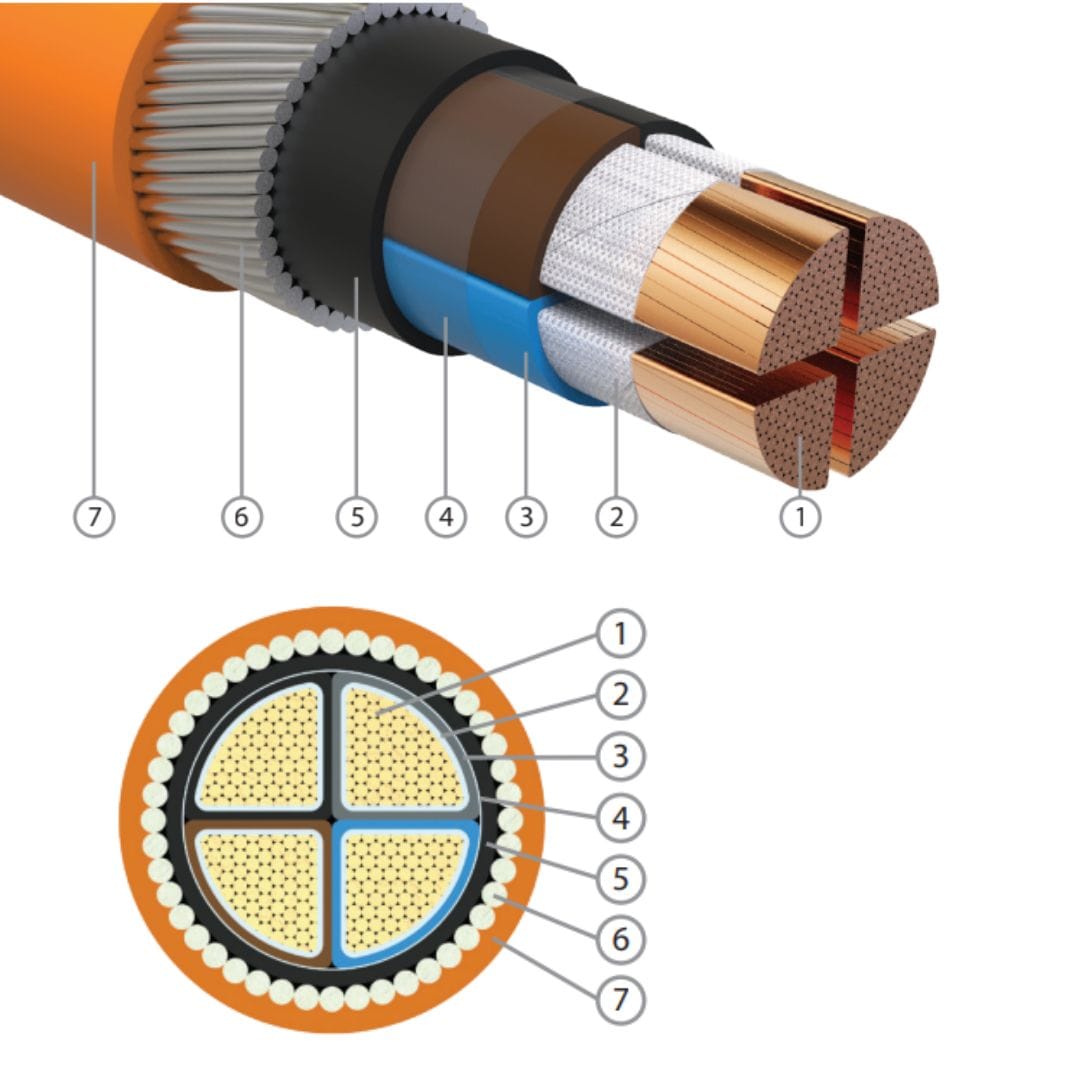

Mica Taped, XLPE Insulated, LSZH Bedded, Galvanised Steel Wire Armoured, LSZH Sheathed Cable, 600/1000V, BS7846
Download Catalog Click Here!
Reference Standards (Certifications)
| Design Specification | BS7846 |
| Conductor | IEC60228, BS EN60228 |
| Fire Resistance | BS6387 (C,W,Z), SS299 (C,W,Z), IEC60331 |
| Flame Retardancy | IEC60332-3-22, BS EN60332-3-22 |
| Low Smoke Zero Halogen | IEC61034-2, BS EN61034-2 IEC60754-1, IEC60754-2 BS EN60754-1, BS EN60754-2 |
